Figure 8

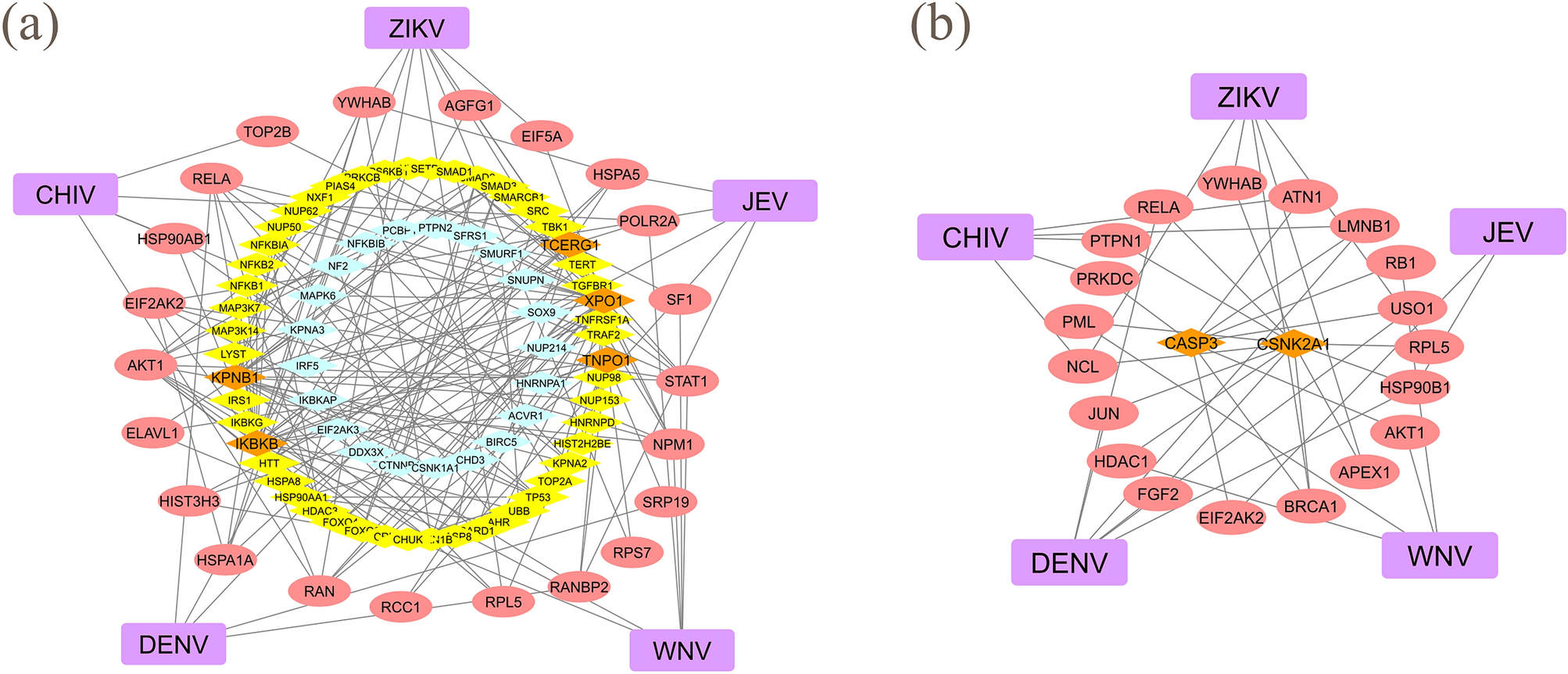

(a) Minimum network with a low degree of the target proteins. The target proteins, which are shared proteins TNPO1, TCERG1, IKBKB, KPNB1 and XPO1 with 50 or less degrees, are shown as orange diamonds. Common (red ellipses) and extended (yellow diamonds) signature proteins in this network are connected to the five viral infections (purple round squares). Twenty-one added proteins are shown as light blue diamonds. (b) Minimum network with a high degree of the target proteins. The target proteins, which are shared proteins CASP3 and SNK2A1 with greater than 130 degrees, are shown as orange diamonds.
