Figure 5

From: Determination of a microRNA signature of protective kidney ischemic preconditioning originating from proximal tubules

Figure 5

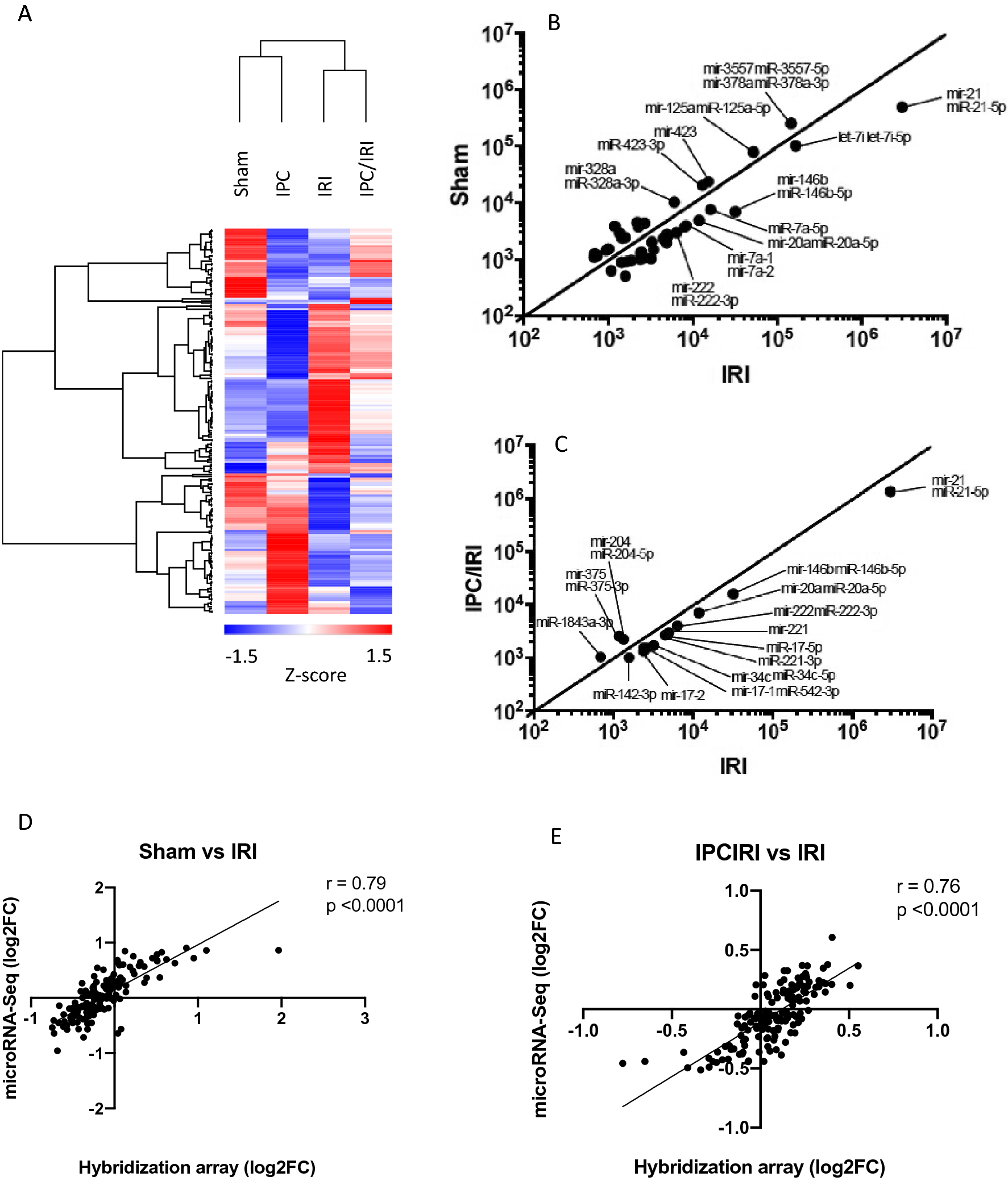

MicroRNA profiling (NGS and comparison with Microarray). Next Generation Sequencing (NGS) analysis of microRNAs from whole kidney tissue of bilateral sham, 45-min IRI, IPC alone, and IPC/IRI groups at 48 h after reperfusion. (A) Hierarchical clustering performed with GENE-E software (B,C) XY plots of (B) Sham versus IRI (C) IRI versus IPC/IRI. (D,E) Comparison of NGS and hybridisation array findings. Correlation plots comparing expression in NGS and Hybridization array datasets for (D) sham versus IRI and (E) IRI versus IPC-IRI groups.
