Figure 6

From: Determination of a microRNA signature of protective kidney ischemic preconditioning originating from proximal tubules

Figure 6

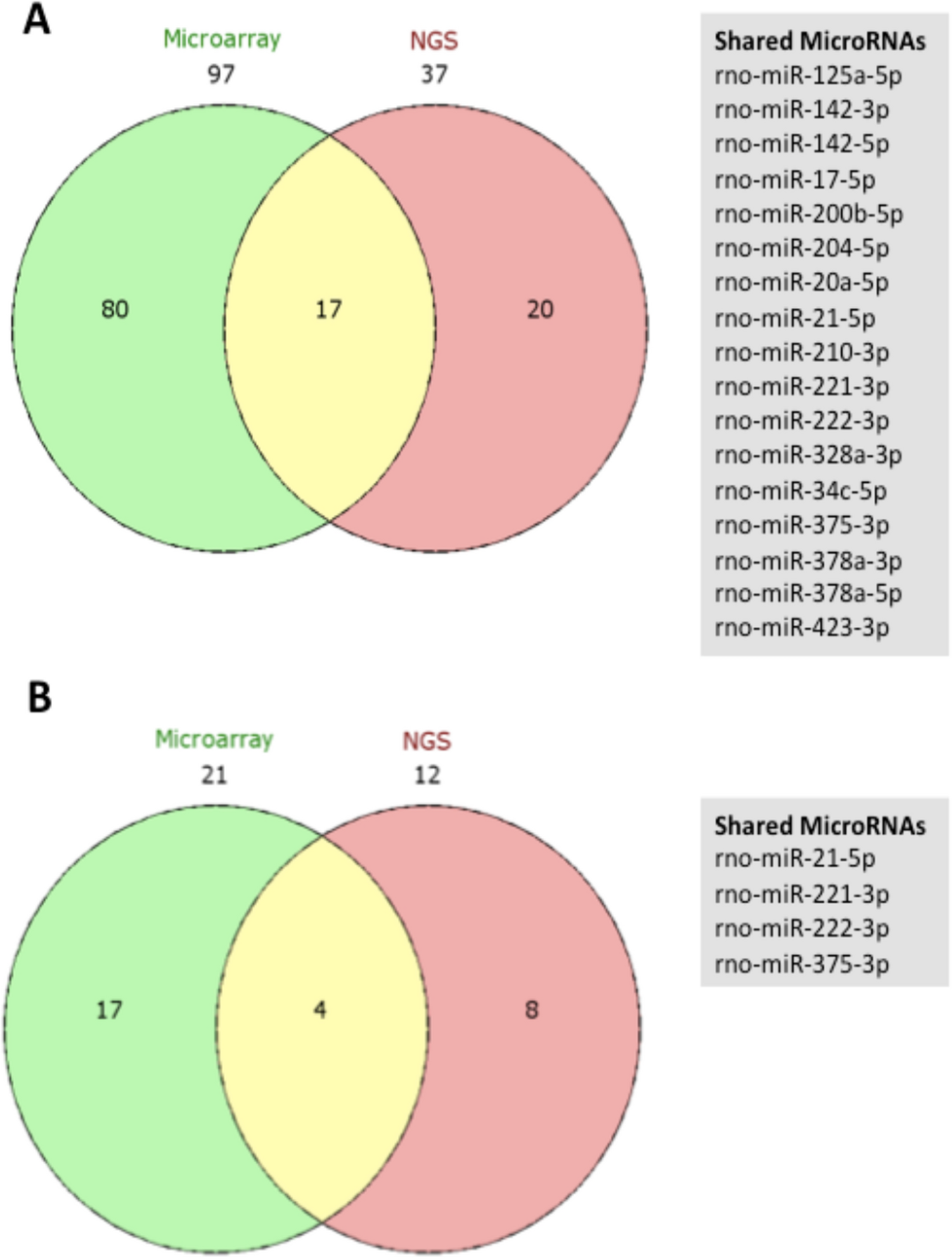

Comparison of Microarray and Next Generation Sequencing analyses. RNA extracted from whole kidney tissue of bilateral sham, 45 min IRI, IPC alone, and IPC-IRI in rats at 48 h after reperfusion underwent Exiqon Microarray (n = 5 each) and Next generation Sequencing (NGS) analyses (pooled samples n = 1 each). Venn diagrams (A) and (B) show the overlap between Microarray and NGS of differentially expressed microRNAs in ‘Sham v IRI’ and ‘IRI v IPC/IRI’ respectively.
