Figure 3
From: Multiview deconvolution approximation multiphoton microscopy of tissues and zebrafish larvae

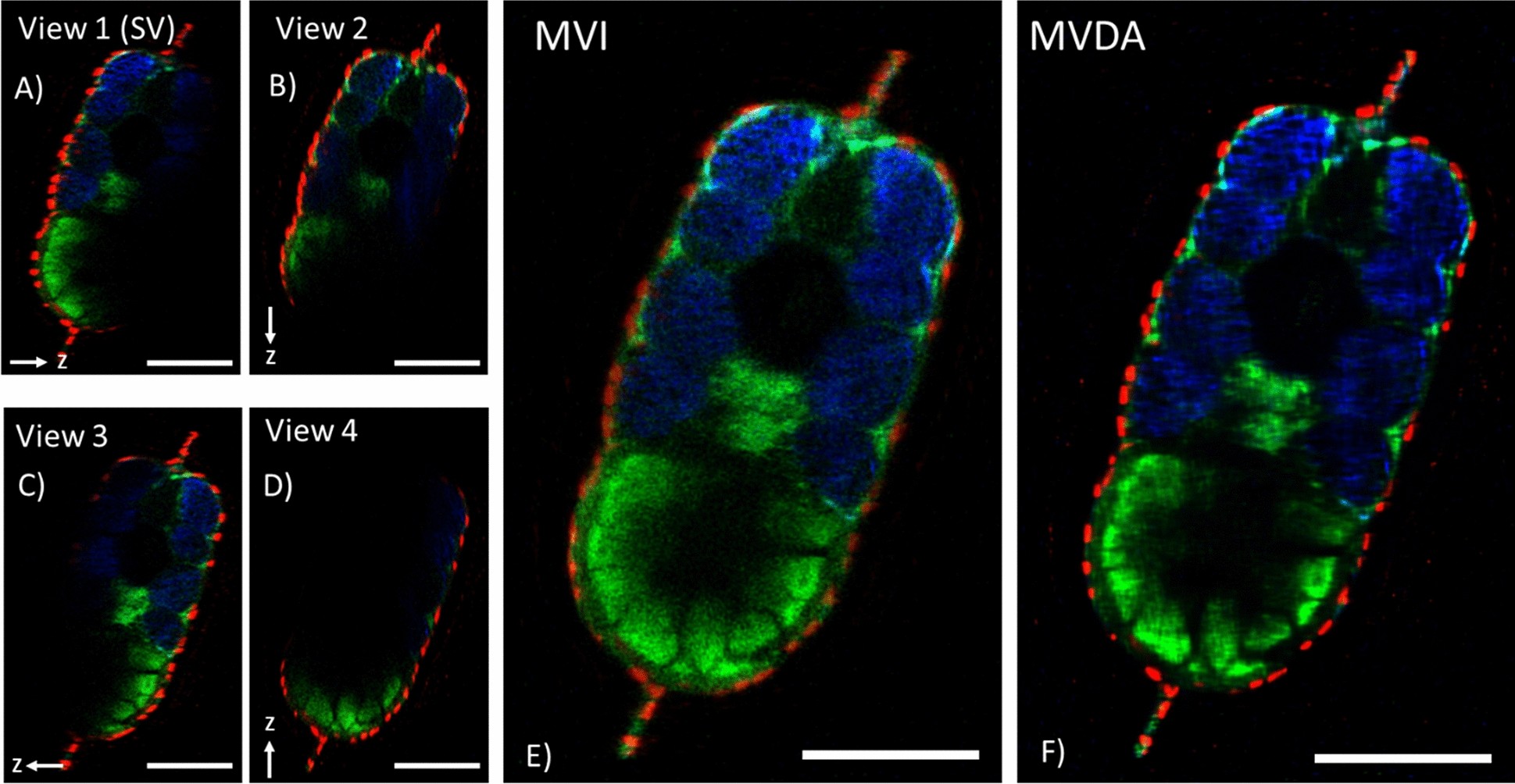

Cross section of the four view Multiview images of a 3dpf zebrafish sample. (A–D) Registered individual single view images. Arrow indicates the direction of the z axis of each view. Rotation axis for MVI was on the x-axis which is perpendicular to these images. (E) MVI (fusion) of single images, where the entirety of the sample is visible. (F) MV deconvolution approximation (MVDA) image. Structures appear with better contrast as noise is decreased and resolution improved. Low signal features become better visible in this image. Scale bars 100 μm. (Images were created with Fiji26).
