Figure 4
From: A novel error correction protocol for continuous variable quantum key distribution

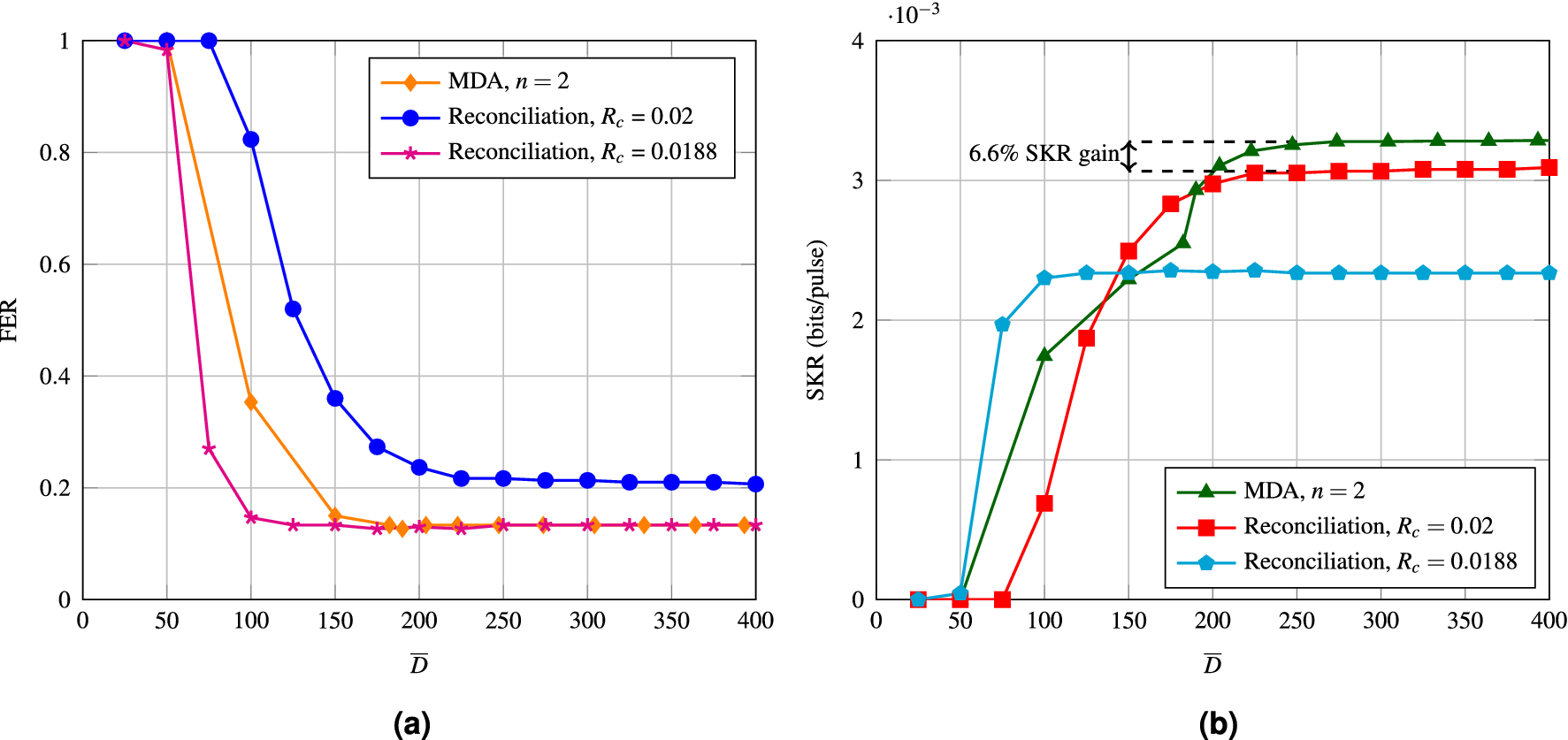

(a) FER of MDA compared to an LDPC code with \(R_c\) = 0.02, and to an LDPC code with \(R_c\) = 0.0188 as a function of the average amount of decoding iterations. All the simulations were performed at an SNR of \(-15.23\) dB. (b) SKR of MDA compared to an LDPC code with \(R_c\) = 0.02, and to an LDPC code with \(R_c\) = 0.0188 as a function of the average amount of decoding iterations. All the simulations were performed at an SNR of \(-15.23\) dB.
