Figure 2
From: Soil organic carbon cycling in response to simulated soil moisture variation under field conditions

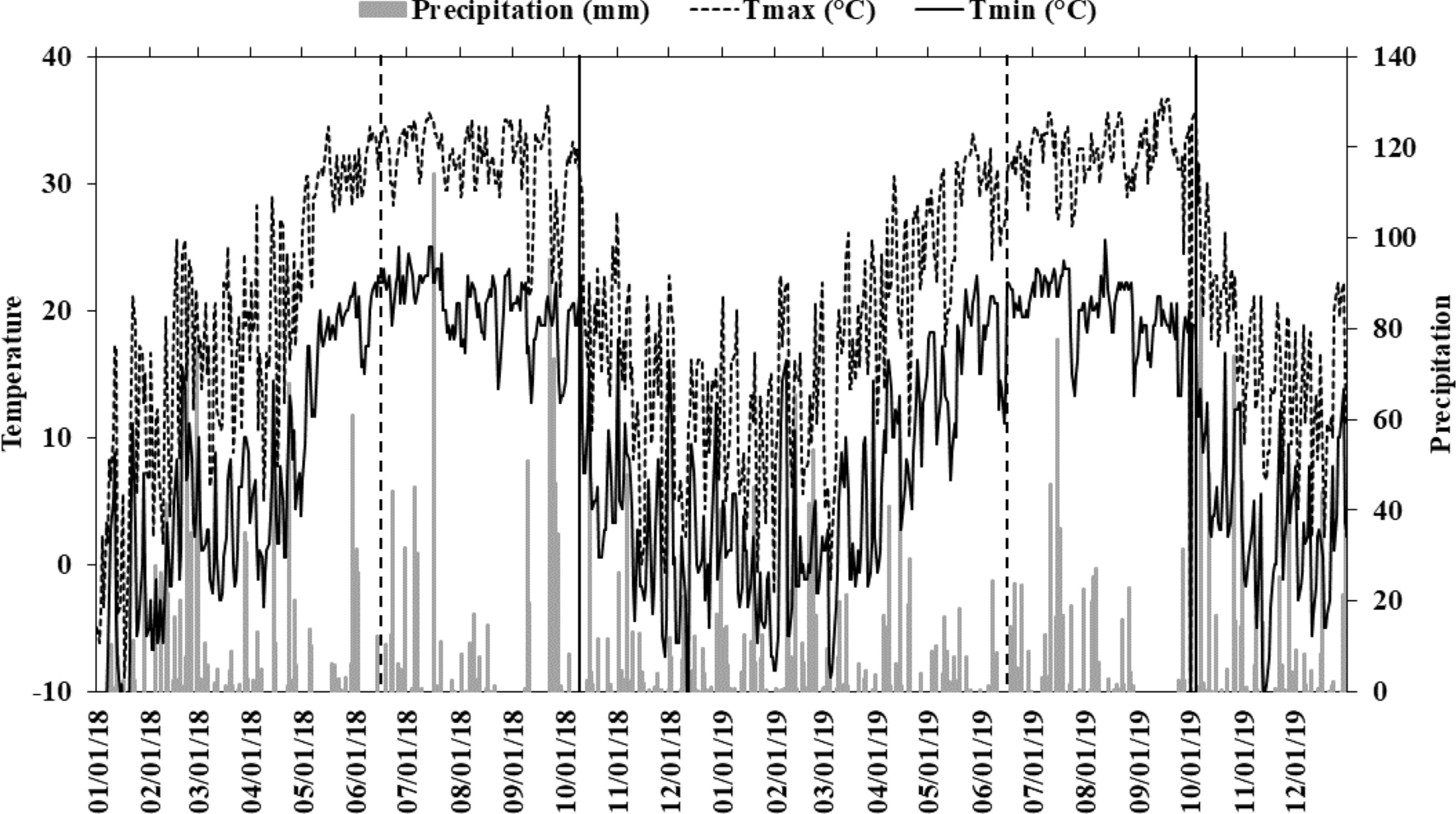

Daily maximum and minimum air temperature and precipitation during 2018 and 2019. Tmax, maximum air temperature; Tmin, minimum air temperature. The vertical dashed lines represents the shelter establishment dates and the vertical solid lines represent the shelter removal dates during 2018 and 2019.
