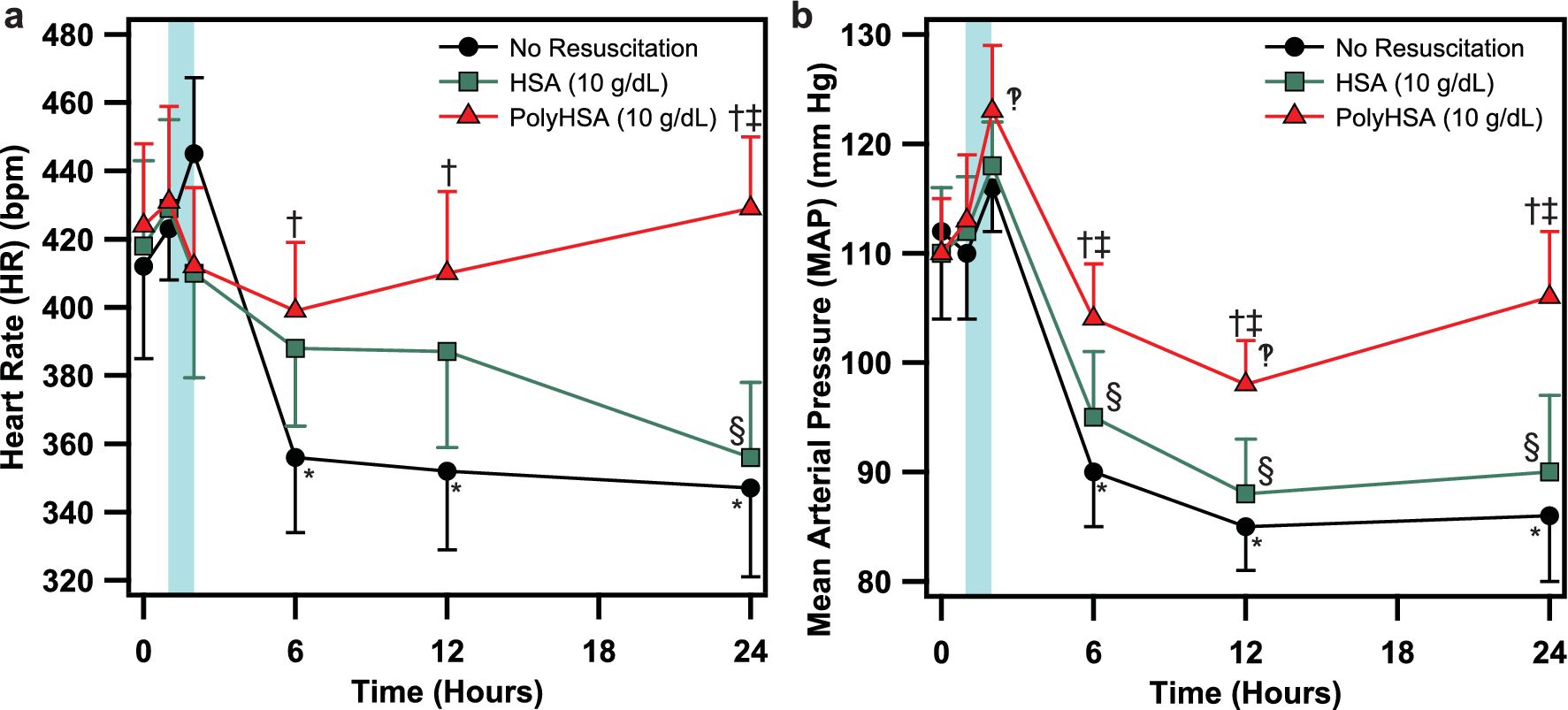

Figure 2
From: Polymerized albumin restores impaired hemodynamics in endotoxemia and polymicrobial sepsis
Changes in systemic hemodynamics following LPS induced endotoxemia. (a) Heart rate (HR) and (b) mean arterial pressure (MAP) with no resuscitation, infusion of HSA, or infusion of PolyHSA. The shaded blue region on the plots indicates the period of fluid resuscitation with PolyHSA or HSA. Data are presented as mean and SD. †P < 0.05 between the PolyHSA and no resuscitation groups at the same time point. ‡P < 0.05 between the PolyHSA and HSA groups at the same time point. Symbols next to data points indicate a significant (P < 0.05) difference at that time point compared to baseline conditions for (*) no resuscitation, (§) HSA, and (‽) PolyHSA (n = 6 animals/group).
