Figure 10

From: A system for controlling vocal communication networks

Figure 10

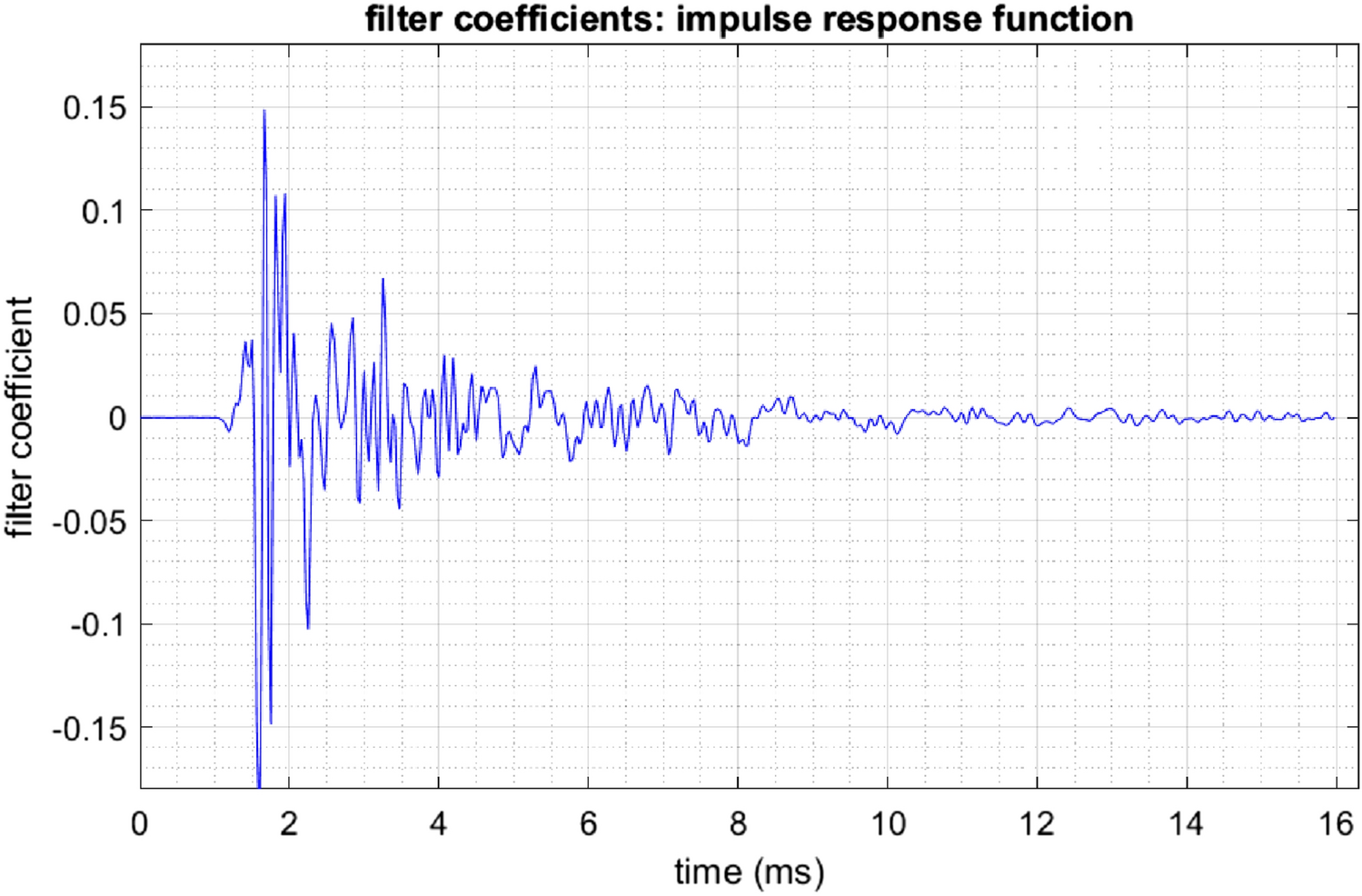

The impulse response (IR) function of the isolation chamber containing a plexiglass cage (between the loudspeaker and the microphone). The distance between the microphone and loudspeaker was about 50 cm, in agreement with the ~ 1.5 ms lag of the first IR extremum.
