Figure 6

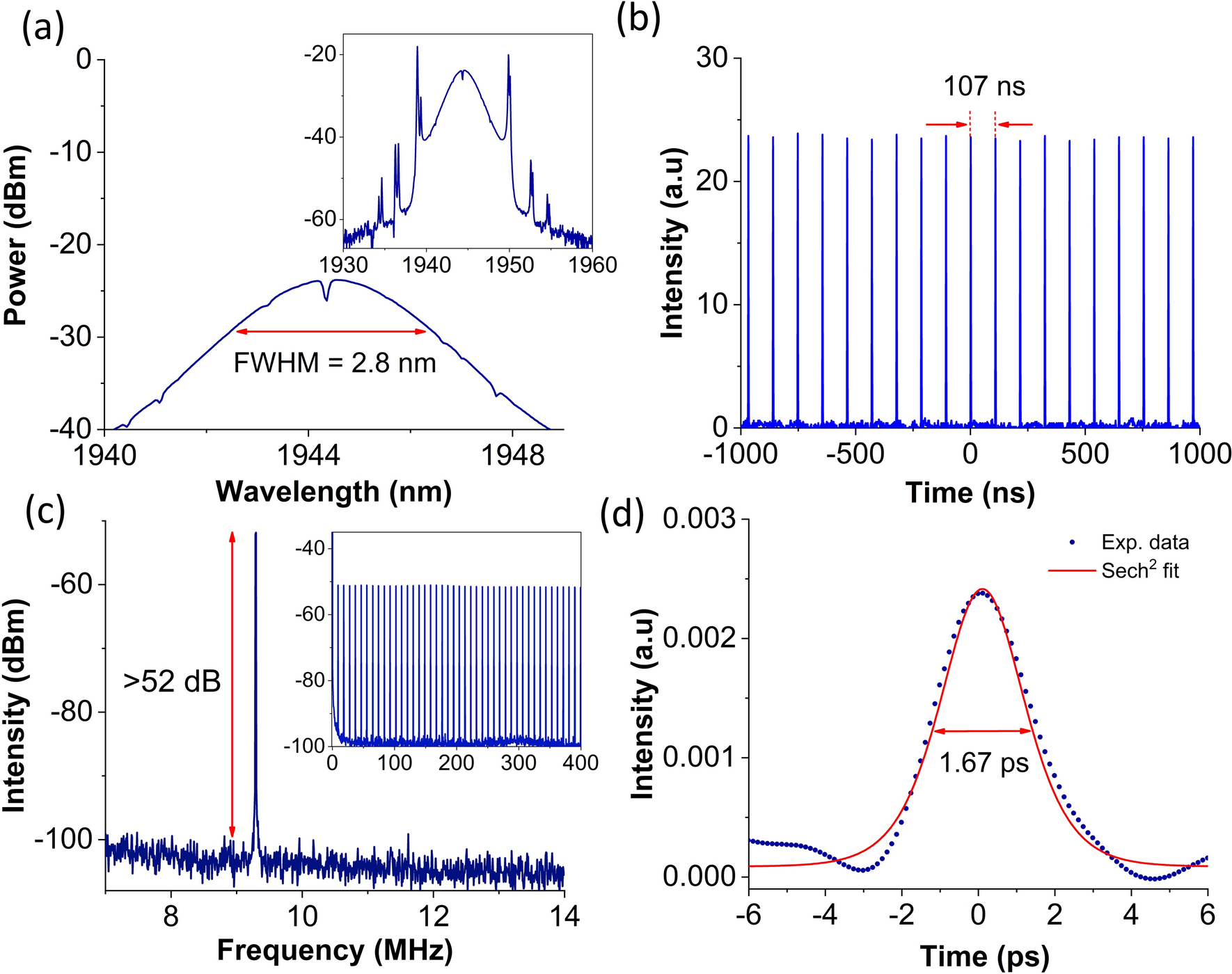

Mode-locked TDFL output at 476 mW. (a) Enlarged optical spectrum (Inset shows full soliton spectrum); (b) oscilloscope trace; (c) radio frequency (RF) spectrum (Inset shows the RF spectrum at a wider span range of 400 MHz); and (d) autocorrelation trace.
