Figure 3

From: Analysis of the role of Purα in the pathogenesis of Alzheimer's disease based on RNA-seq and ChIP-seq

Figure 3

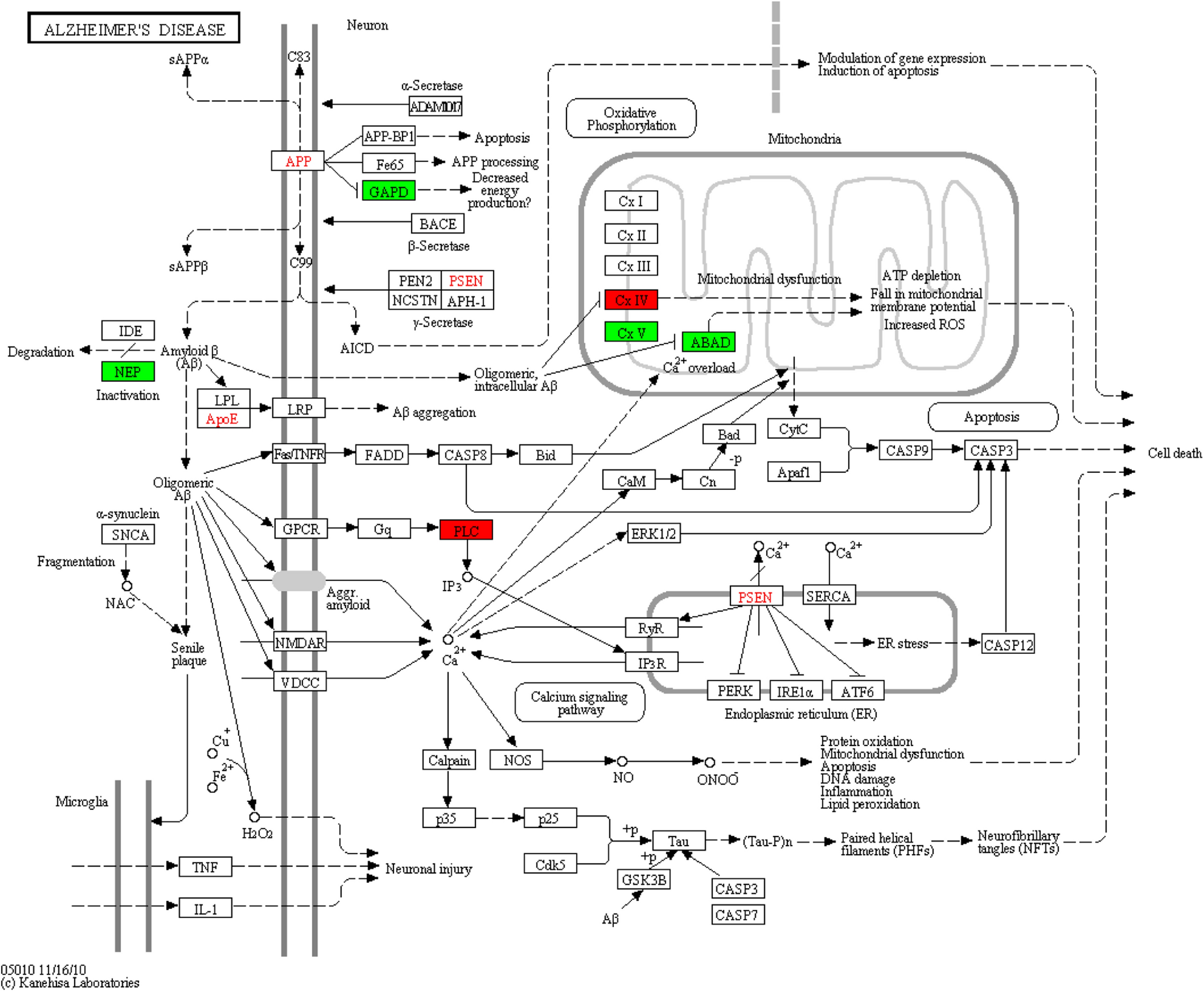

Distribution of differential genes in Alzheimer disease pathway. Through KEGG annotation analysis, we found 7 genes related to the Alzheimer disease pathway. There are 4 core factors in Alzheimer disease, which are APP, PSEN, ApoE, and Tau, shown in red font. The seven genes enriched were Lpl (LPL), Mapt (Tau), Mme (NEP), Ndufa3 (Cx I), Lrp1 (LRP), Gapdh (GAPD), and mt-Co3 (Cx IV). Green boxes indicate down-regulation of related genes, and red indicates up-regulation.
