Figure 5

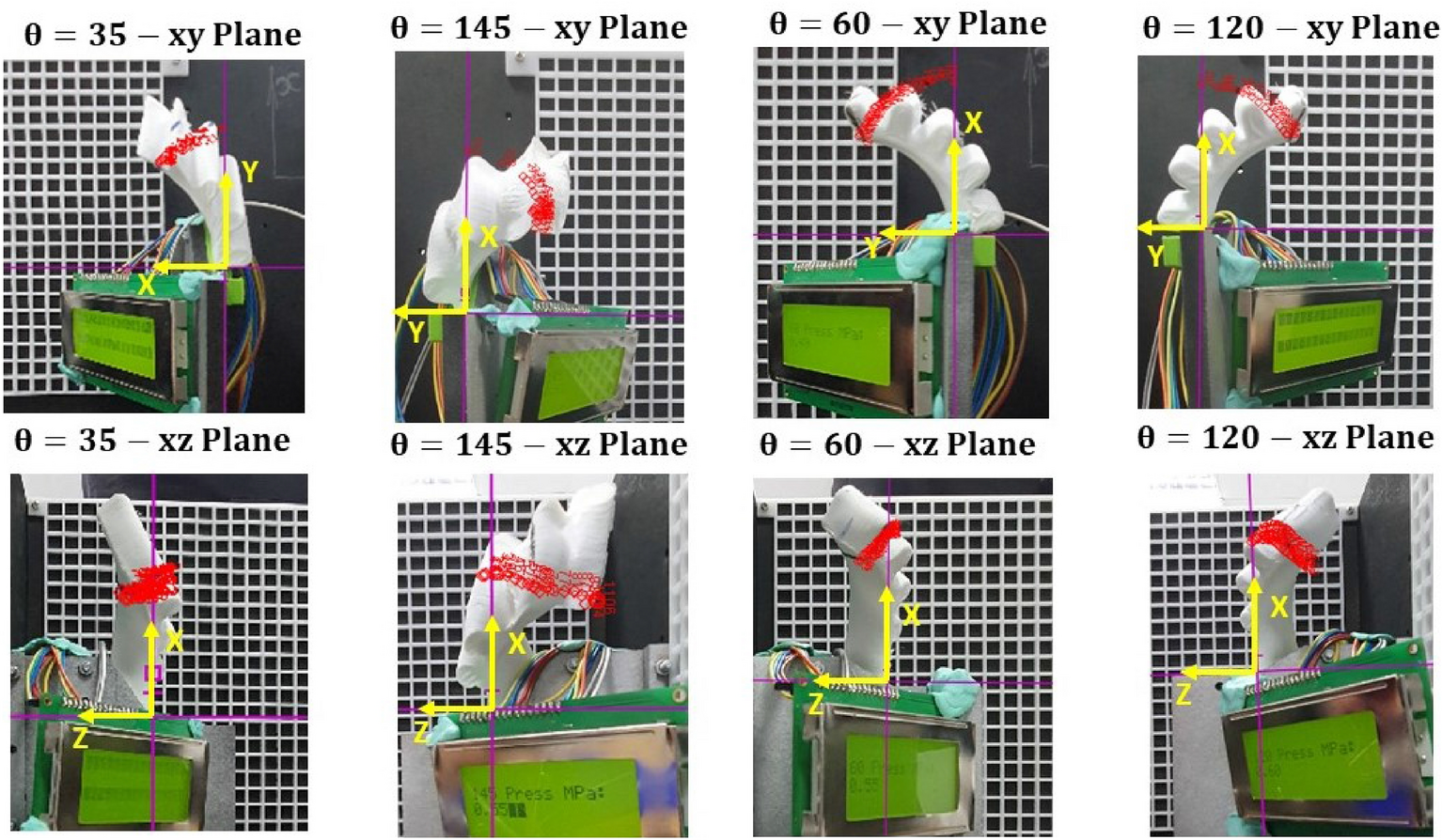

The two frames (XY and XZ) for 4 manufactured SPAs, the figures are snap-shots from tracker software where the origin axis in purple and the tip position throughout the trial is indicated in red circles.
Figure 5 | Scientific Reports
The two frames (XY and XZ) for 4 manufactured SPAs, the figures are snap-shots from tracker software where the origin axis in purple and the tip position throughout the trial is indicated in red circles.
