Figure 8
From: Rapid manufacturing of micro-drilling devices using FFF-type 3D printing technology

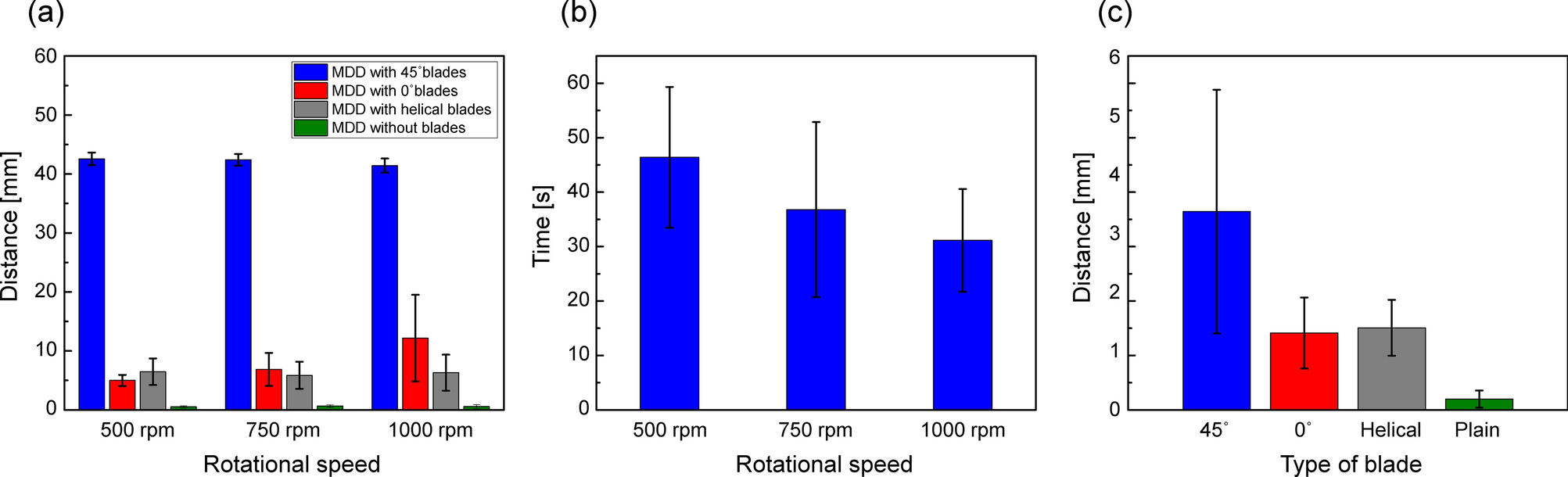

(a) Total distance to drill the clogged artificial thrombus (0.4% concentration) for 90 s with respect to three different rotational speed. (b) Required time of MDD with 45º blades to drill the 5 cm clogged artificial thrombus (0.4% concentration) with respect to the three different rotational speed. (c) Total penetrated distance of the clogged artificial thrombus (0.6% concentration) during a 90 s duration under the rotational speed of 1000 rpm. Total five different samples were tested three times for each result. Error bar represents the standard deviation (n = 15).
