Figure 3
From: Conjugated topological interface-states in coupled ring resonators

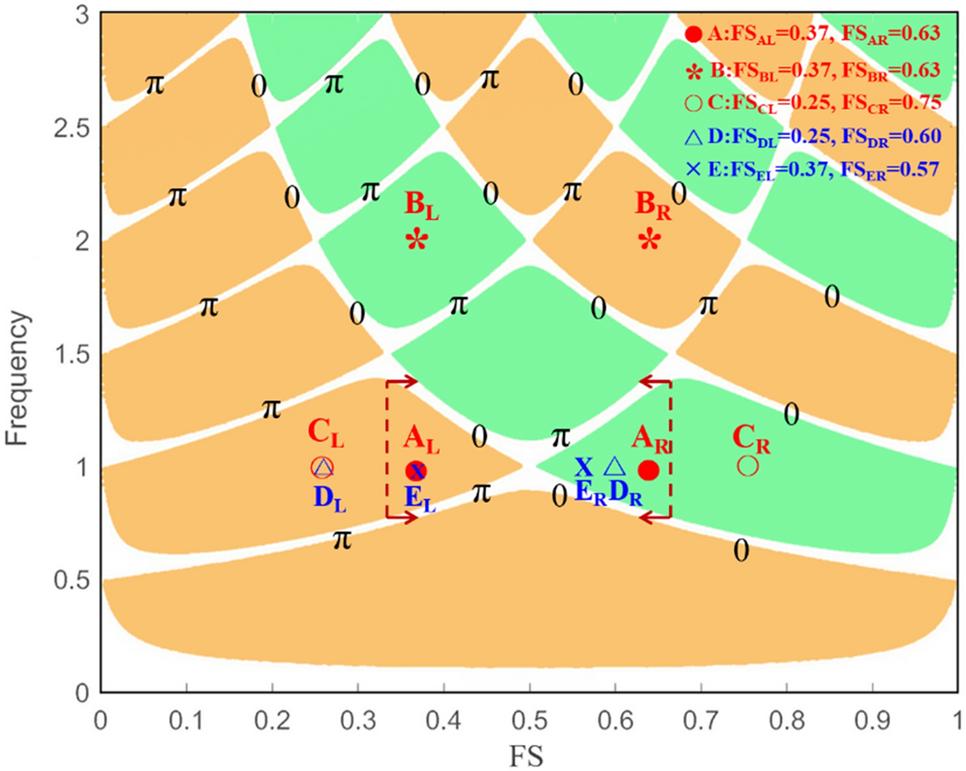

A band structure for the T-SCRR and the normalized frequency versus the filling factor of structure (FS). The parameters of the considered structure are Ra + Rb = 50 um, Cab = 0.1, N = 4.
