Figure 7
From: A model and predictions for COVID-19 considering population behavior and vaccination

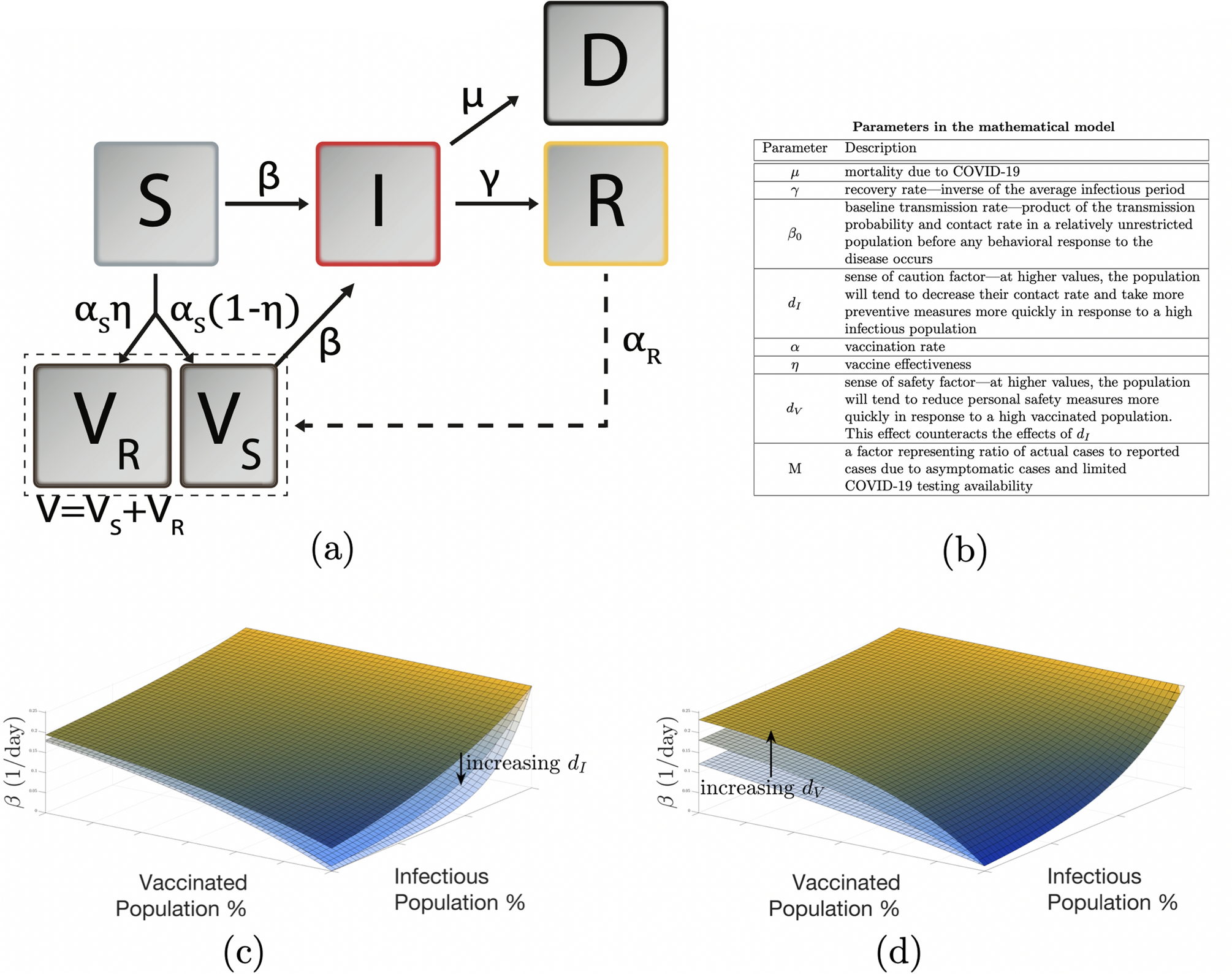

(a) SIRDV compartment model with susceptible (S), vaccinated (V), infectious (I), recovered (R), and deceased (D) populations. Flow between between compartments is shown with arrows. (b) Description of model parameters. (c) and (d) Show variations in disease transmission rate \(\beta\), due to social response to infectious and vaccinated populations. (c) \(\beta\) for a range of level of caution factor \(d_I\) (100, 200, 400), and (d) \(\beta\) for a range of sense of safety factor \(d_V\) (1, 2, 4).
