Figure 3
From: CubeSats deliver new insights into agricultural water use at daily and 3 m resolutions

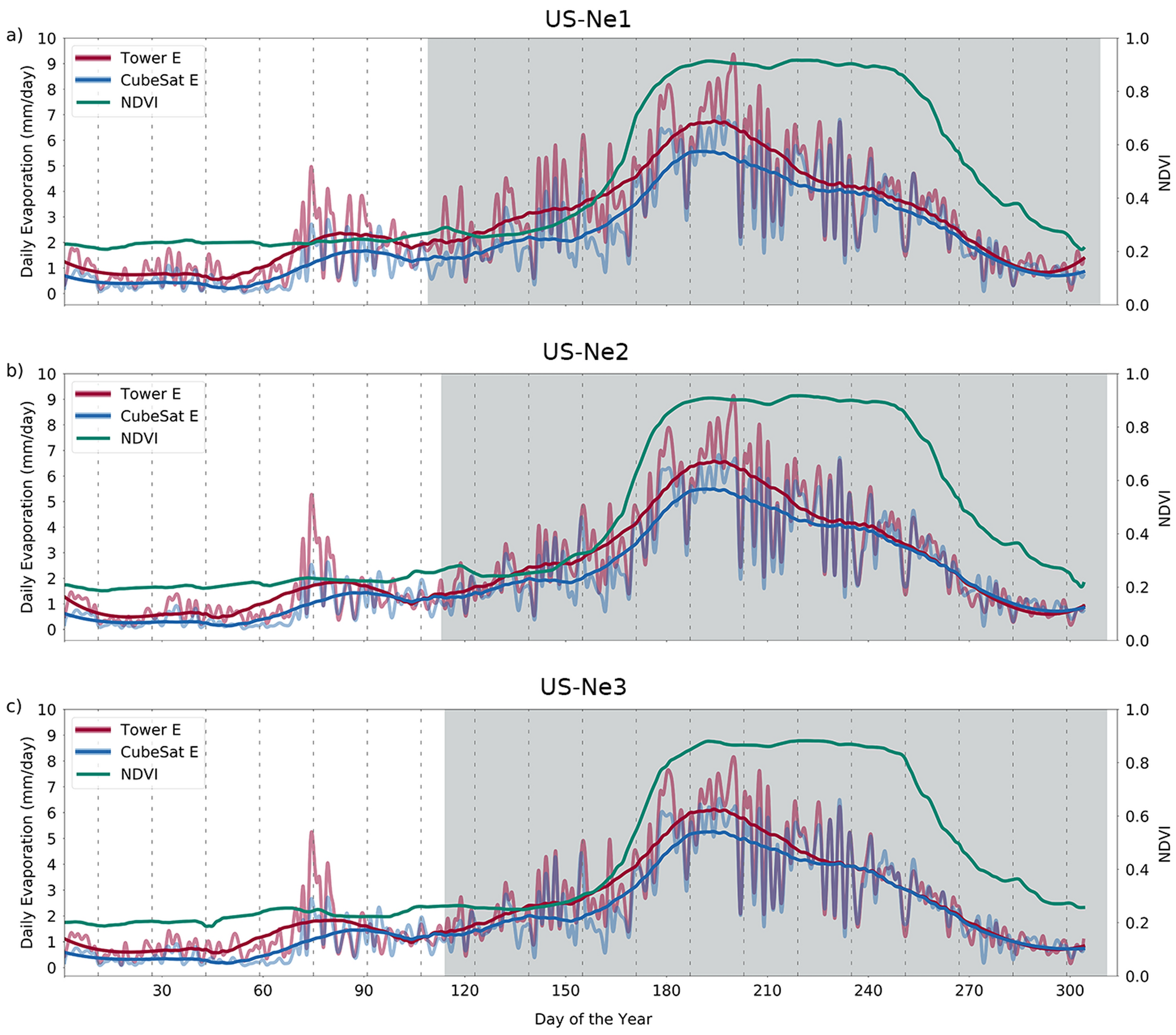

Time series of daily E for the CubeSat-based and closure-corrected EC measured fluxes, together with field-scale averaged NDVI for (a) US-Ne1, (b) US-Ne2, and (c) US-Ne3. The solid lines for the residual corrected and CubeSat E are smoothed versions of the original time-series. The shaded areas represent the length of the growing season (typically May–October), while the dashed lines represent the scheduled Landsat-8 overpasses.
