Figure 4
From: Feasibility study on stereotactic radiotherapy for total pulmonary vein isolation in a canine model

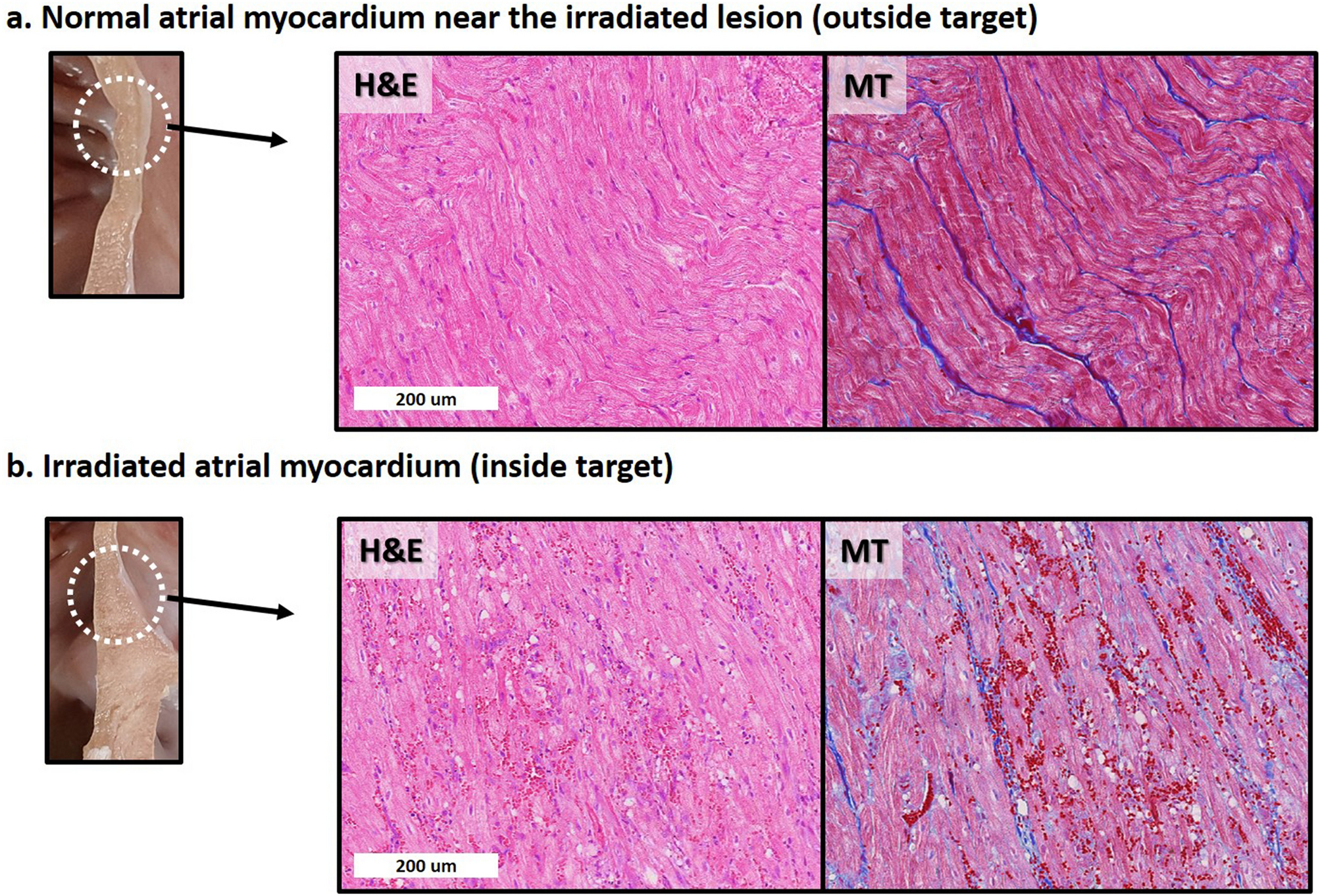

Histologic changes after irradiation at 6 weeks. There is no gross lesion at 6 weeks. However, from the light microscopic evaluation with H&E and MT staining, compared to normal atrial myocardium near the irradiated lesion (a), irradiated atrial myocardium (b) shows diffuse vacuolization with extensive hemorrhage and inflammatory cell infiltration with dilated capillaries. H&E hematoxylin and eosin, MT Masson’s trichrome.
