Figure 1
From: Large scale self-assembly of plasmonic nanoparticles on deformed graphene templates

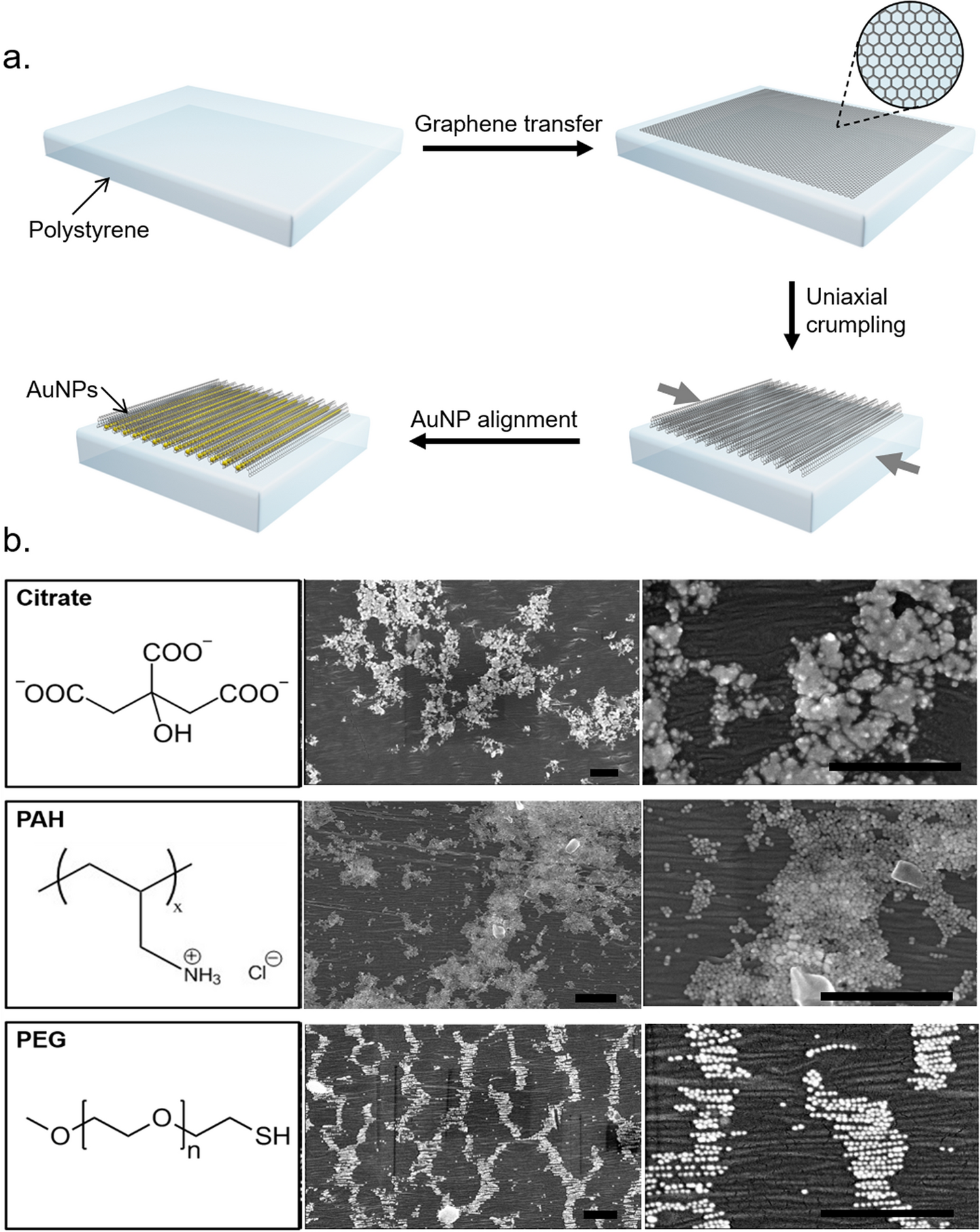

Schematic of graphene buckle delamination and gold nanoparticle assembly, and SEM images of gold nanoparticles with varying surface chemistry deposited onto buckle delaminated graphene. Schematic of graphene buckle delamination and gold nanoparticle assembly (a). SEM images of 20 nm AuNPs with citrate, poly(allylamine hydrochloride), and poly(ethylene glycol) surface coatings, after deposition and drying on graphene substrates (b). All scale bars 500 nm. Schematic was created with Autodesk 3ds Max software (version 2018, http://www.autodesk.com).
