Figure 2

From: Large scale self-assembly of plasmonic nanoparticles on deformed graphene templates

Figure 2

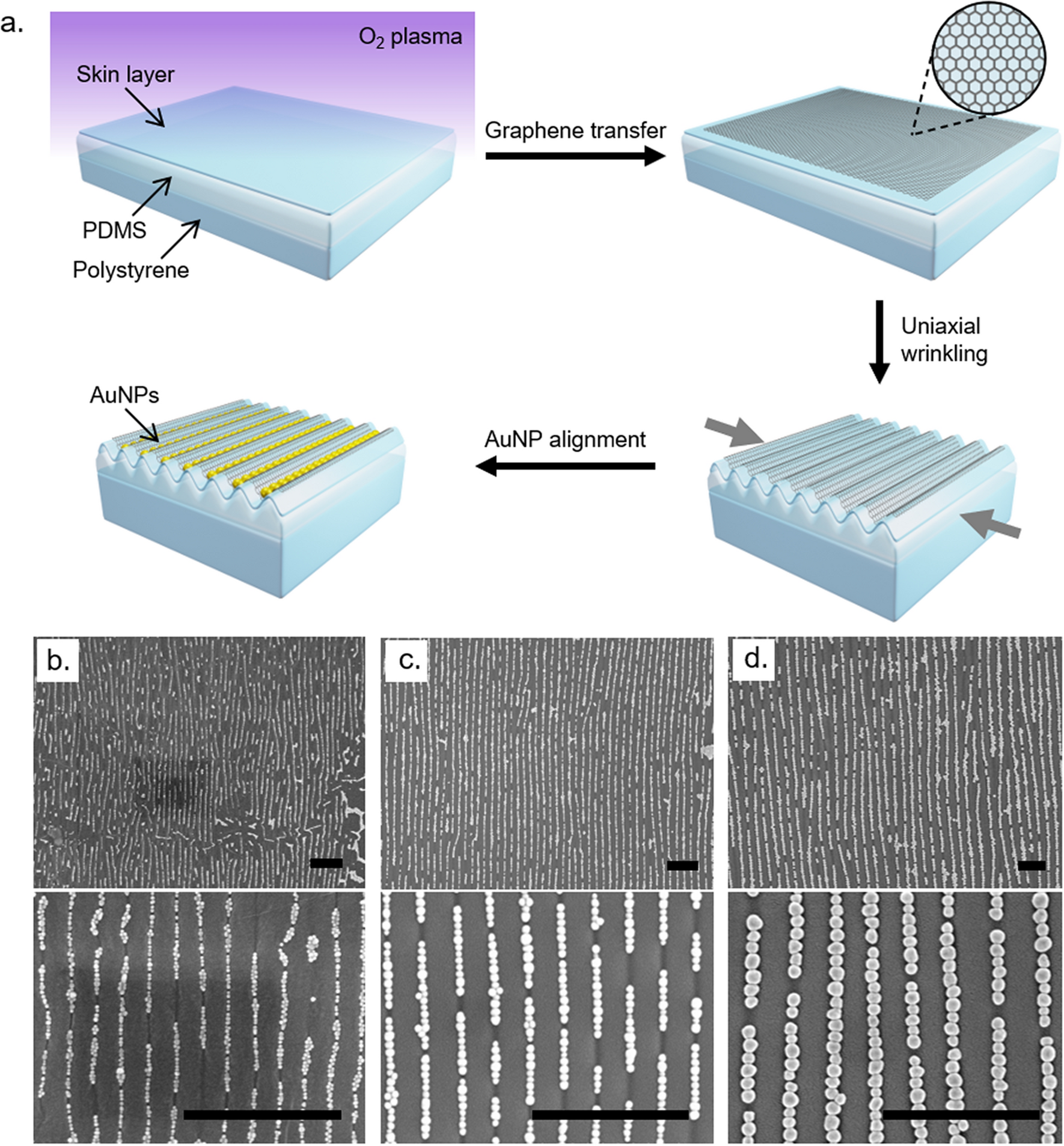

Schematic of conformal graphene wrinkling on PDMS and gold nanoparticle assembly, and SEM images of gold nanoparticles aligned on conformal wrinkled graphene. Schematic of wrinkled substrate assembly and AuNP deposition (a), SEM micrographs of 20 nm (b), 50 nm (c), and 80 nm (d) AuNPs on wrinkled graphene. All scale bars 1 μm. Schematic was created with Autodesk 3ds Max software (version 2018, http://www.autodesk.com).
