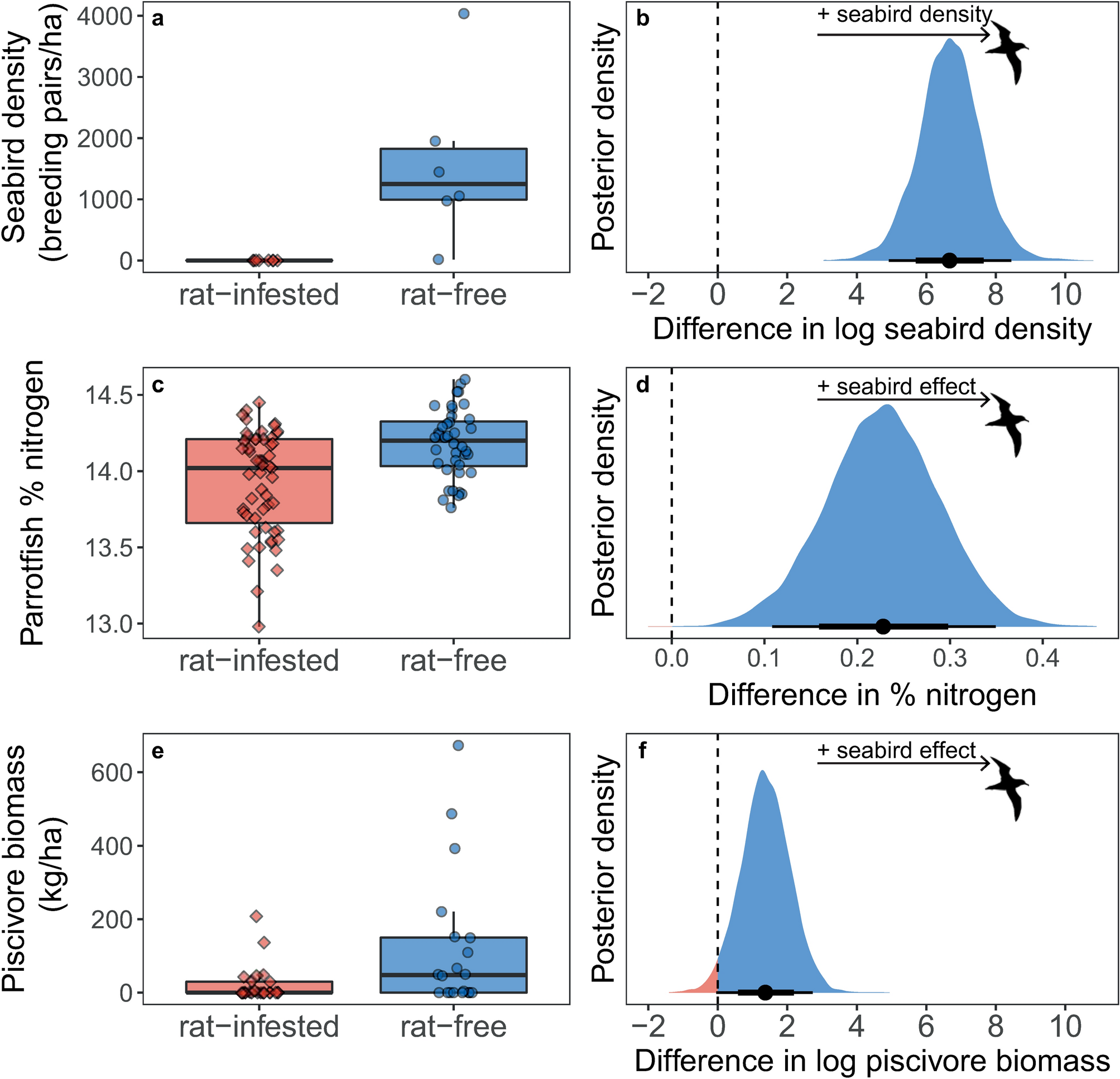

Figure 3
From: Natural nutrient subsidies alter demographic rates in a functionally important coral-reef fish
Potential drivers of demographic differences in Chlorurus sordidus around rat-free islands with abundant seabirds (blue, circles) compared to rat-infested islands with few seabirds (red, diamonds). (a, c, e) Box limits represent first and third quantiles (25% and 75% percentiles), middle line represents the median (50% percentile), and whiskers represent smallest and largest observations less than or equal to 1.5 × inter-quartile range. Each point represents (a) an island, (b) measured values from an individual C. sordidus, or (c) a transect. (b, d, f) Bayesian posterior densities for the effect of seabird presence on the corresponding responses in (a, c, e). Positive values of the posterior distributions (blue fill) indicate a positive effect of seabird presence on the response, negative values (red fill) indicate a negative effect of seabirds (i.e., positive effect of invasive rat presence). Points represent median highest posterior density estimate and lines represent 75% and 95% highest posterior distribution intervals (HPDI). Rat and seabird silhouettes were obtained from phylopic.org under Public Domain Dedication 1.0 licenses.
