From: Small flexible automated system for monitoring Caenorhabditis elegans lifespan based on active vision and image processing techniques

Figure 1

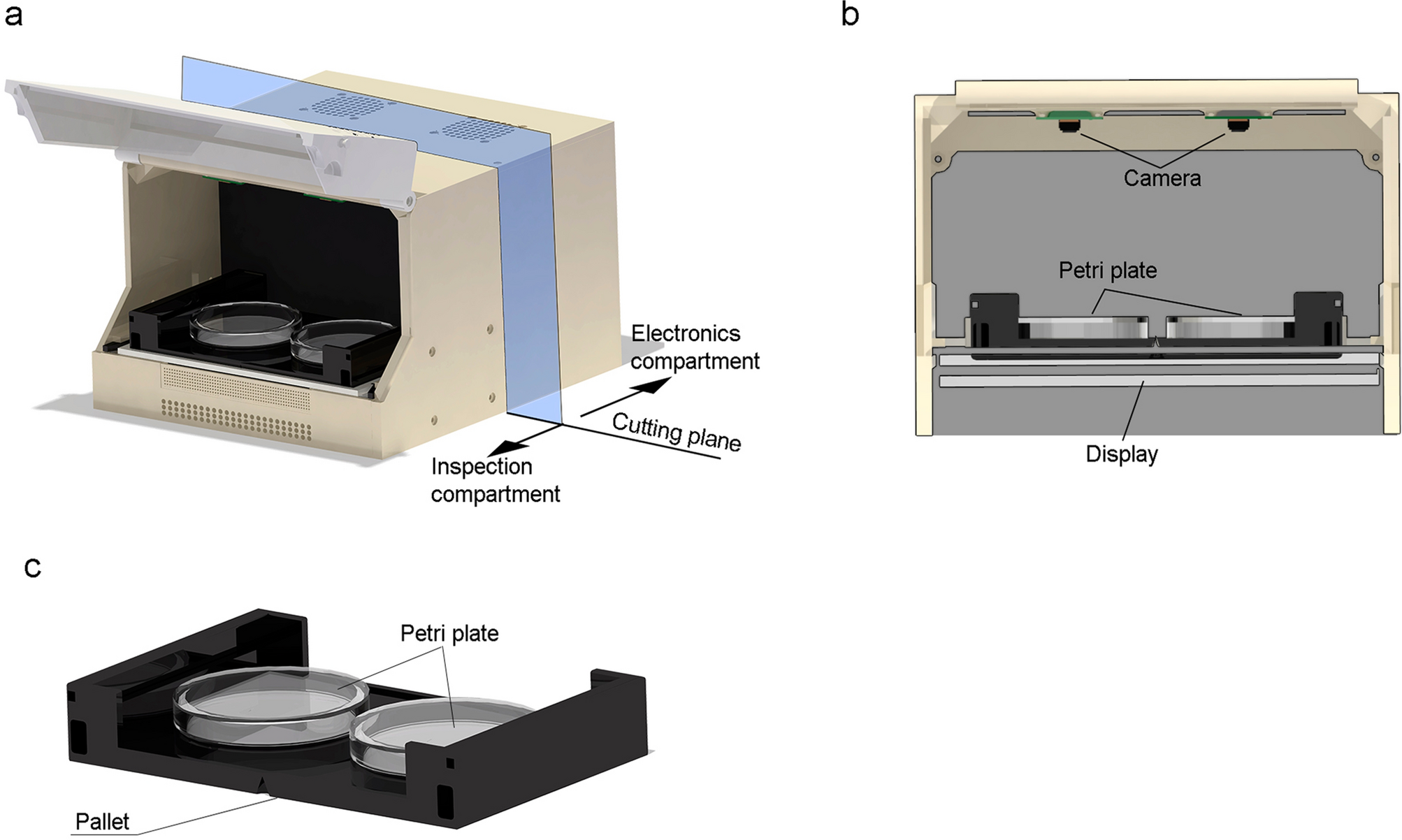

Prototype of the SiViS device. The image was obtained with SOLIDWORKS 2020 SP3.0. (a) SiViS with the open door, showing the pallet inside the inspection area. The electronic compartment, at the back, is closed and therefore hidden from view. (b) Section showing the inspection area and the distribution of the components. (c) Pallet with two slots for the Petri plates.
