Figure 2

From: Protective role of ABCA1 in ischemic preconditioning is mediated by downregulation of miR-33-5p and miR-135-5p

Figure 2

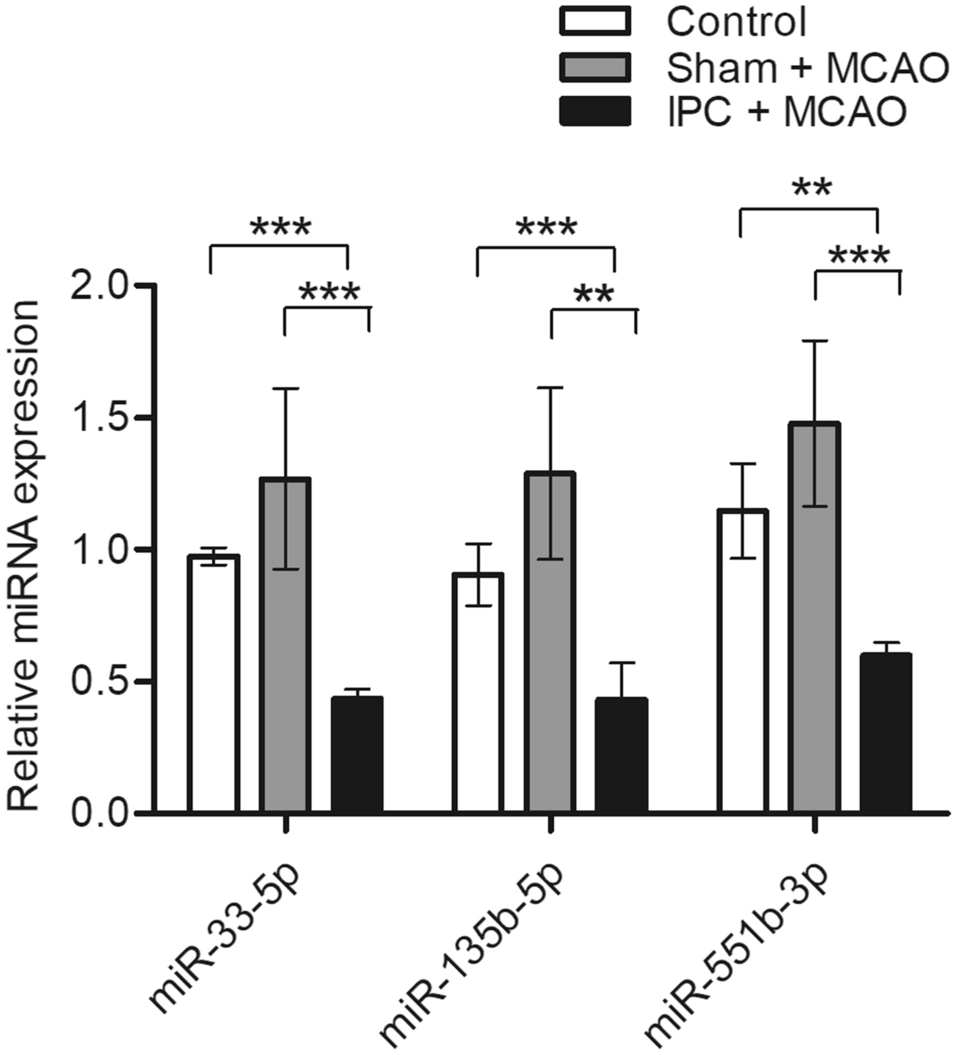

Downregulation of selected miRNAs after IPC. Expression patterns of selected miRNAs from the ipsilateral cortex were validated by RT-qPCR at 3 h after reperfusion and MCAO in both sham and preconditioned mice. Data are shown as mean ± standard deviation (n = 6). Statistical analyses were performed using t-tests (** = p < 0.01, *** = p < 0.001). Abbreviations: miRNA, micro ribonucleic acid; IPC, ischemic preconditioning; RT-qPCR, reverse transcription-quantitative polymerase chain reaction; MCAO, transient middle cerebral artery occlusion.
