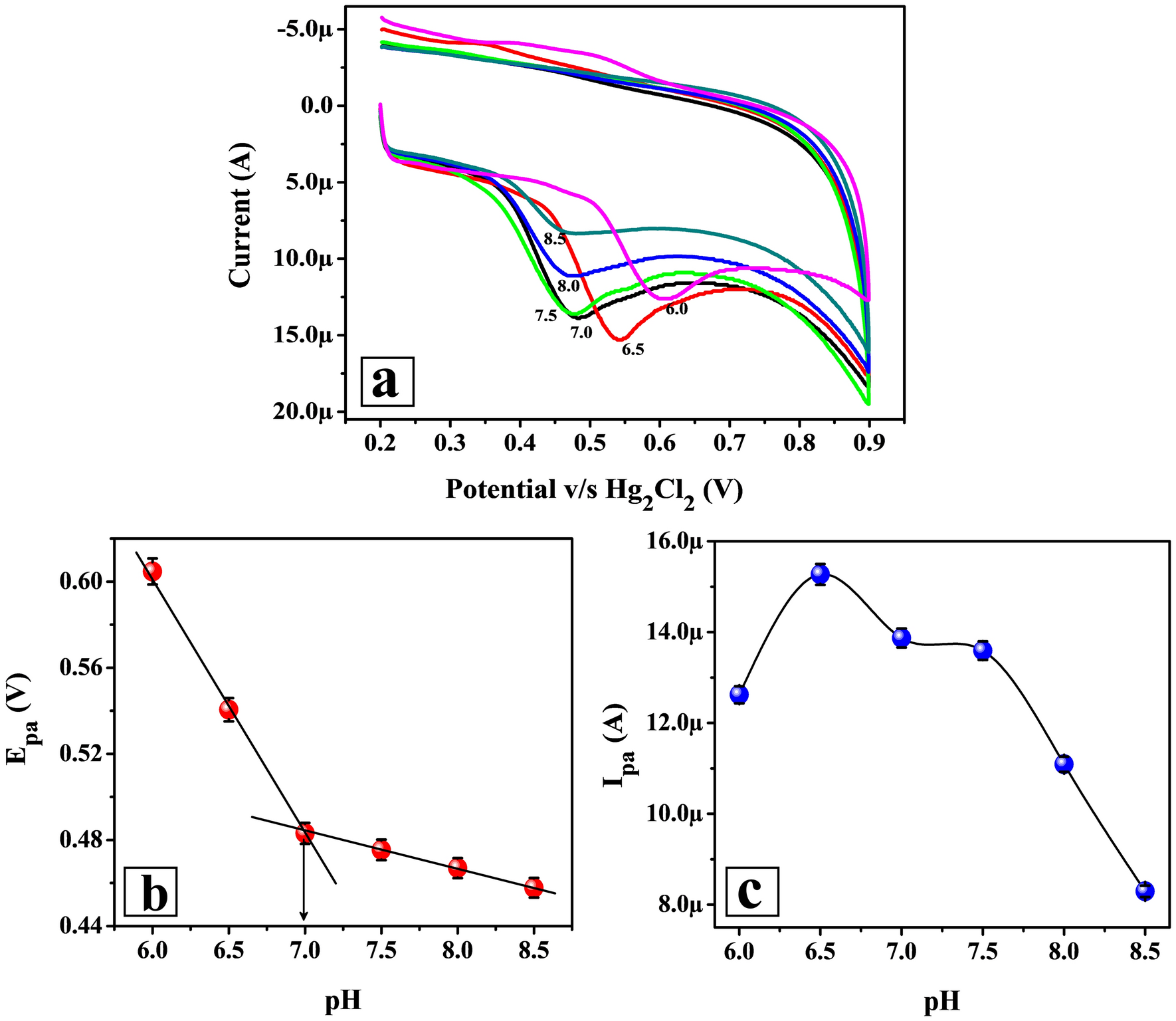

(a) CVs for 0.01 mM FLFT in different pHs of 0.2 M PB (6.0 to 8.5) on the surface of Poly(TY-G)LMWCNTPE at the potential scan rate of 0.1 V/s and the potential interface of − 0.60 to 1.40 V versus Hg2Cl2. (b) The plot of the pH of 0.2 M PB versus the electro-oxidation peak potential of FLFT (n = 6). (c) The plot of the pH of 0.2 M PB versus the electro-oxidation peak current of FLFT (n = 6).
