From: Electro-oxidation of formoterol fumarate on the surface of novel poly(thiazole yellow-G) layered multi-walled carbon nanotube paste electrode

Figure 9

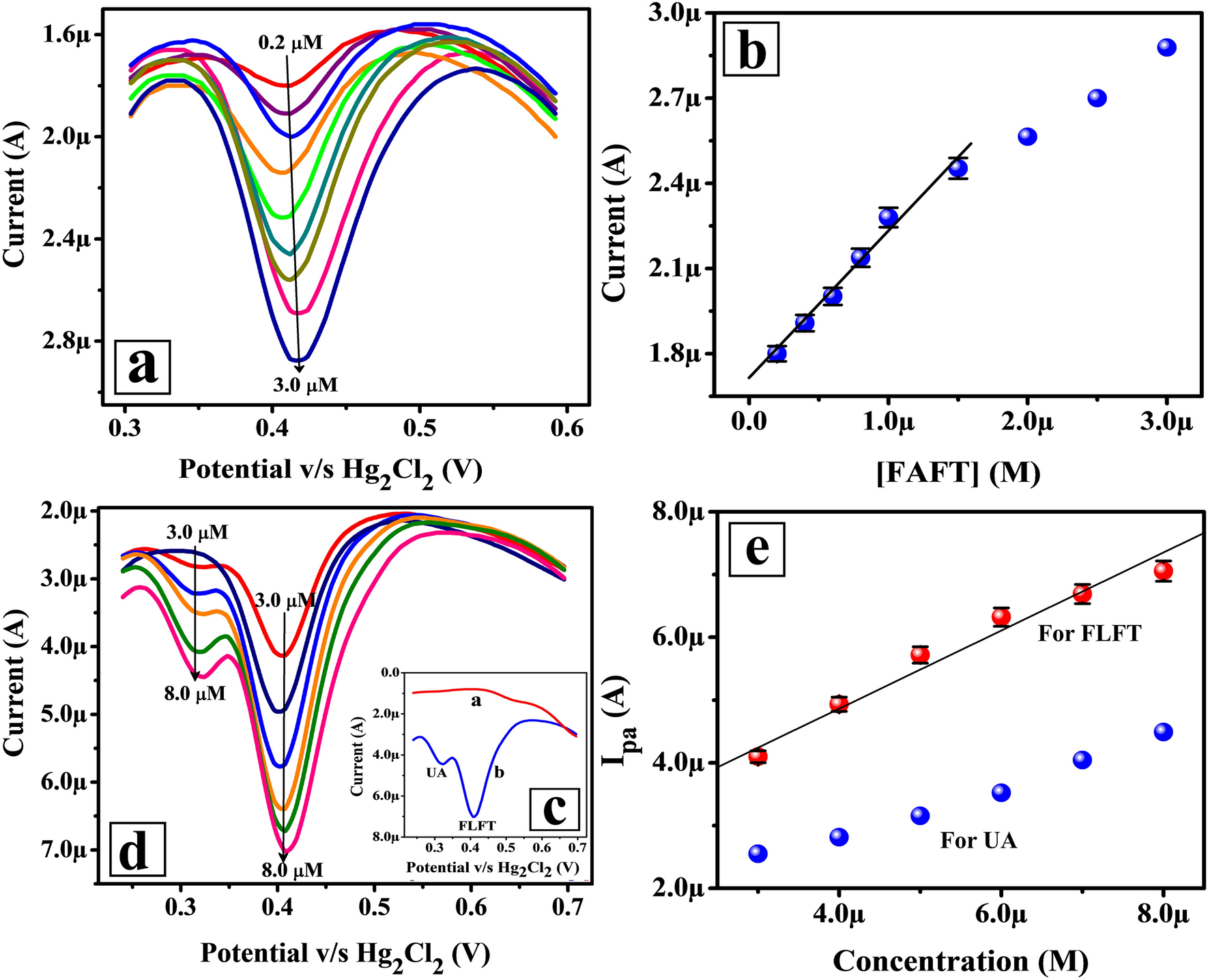

(a) DPVs for the different concentrations of FLFT in the range from 0.2 to 3.0 μM in PB (0.2 M and 6.5 pH) on the surface of Poly(TY-G)LMWCNTPE at the potential gap of 0.3 to 0.6 V versus Hg2Cl2. (b) The plot of the concentration of FLFT versus the electro-oxidation peak current of FLFT (n = 6). (c) DPVs for FLFT and UA in PB (0.2 M and pH 6.5) on the surface of Poly(TY-G)LMWCNTPE (Line ‘b’) and MWCNTPE (Line ‘a’) at the potential gap of 0.25 to 0.7 V versus Hg2Cl2. (d) DPVs for the different concentrations of FLFT and UA in the range from 0.3 to 0.8 μM in PB (0.2 M and pH 6.5) on the surface of Poly(TY-G)LMWCNTPE at the potential gap of 0.25 to 0.7 V versus Hg2Cl2. (e) The plot of the concentration of FLFT and UA versus the electro-oxidation peak current of FLFT and UA (n = 6).
