From: Sodium lignosulfonate improves shoot growth of Oryza sativa via enhancement of photosynthetic activity and reduced accumulation of reactive oxygen species

Figure 2

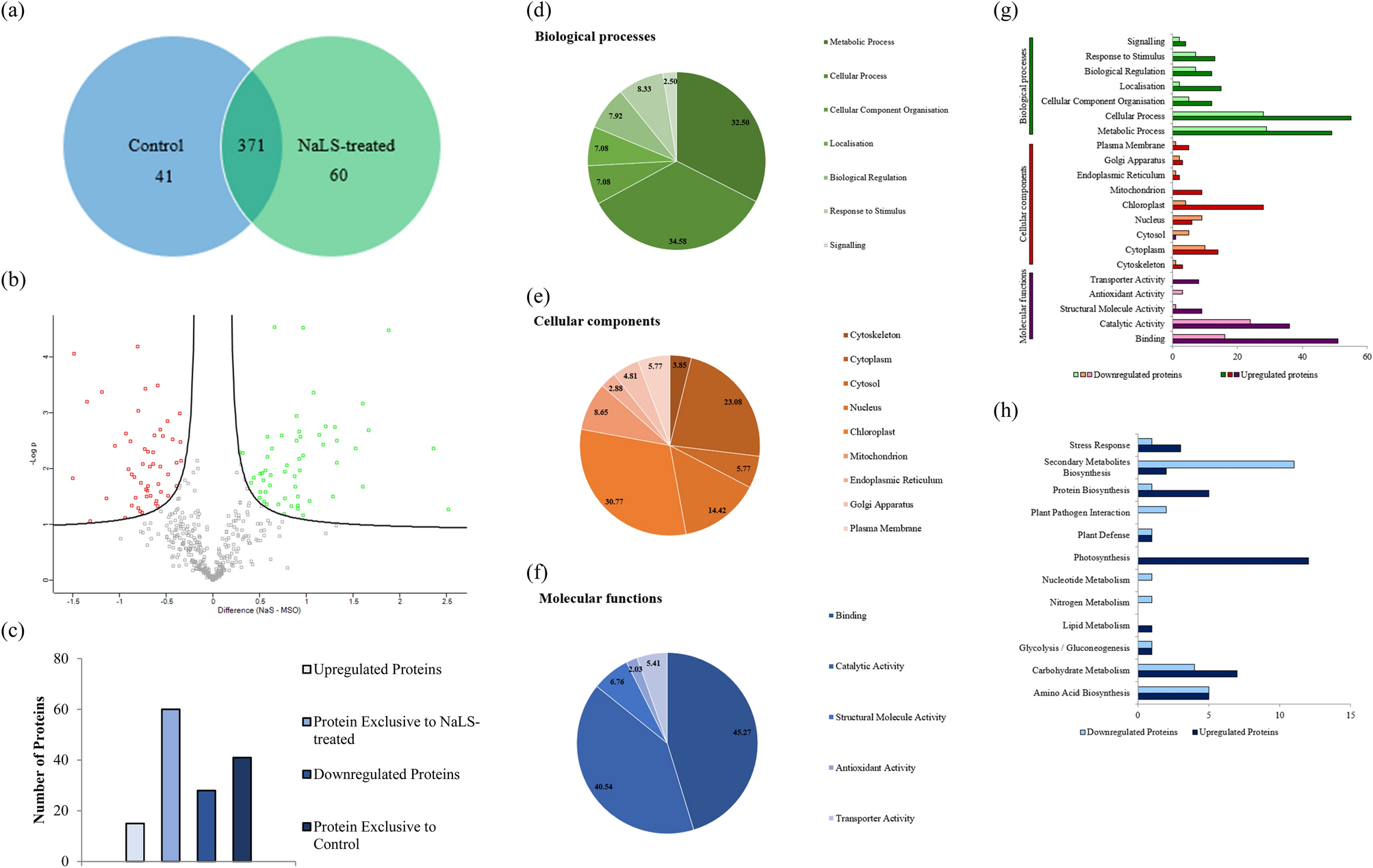

Comparative proteomic analysis between MSO and NaLS-treated rice. (a) Venn diagram of the total protein obtained from MSO and NaLS-treated rice. (b) Volcano plot showing up- (green squares) and downregulated (red squares) proteins of the NaLS-treated rice. (c) The total numbers of exclusive, up-regulated and down-regulated proteins in NaLS-treated rice compared to MSO. Gene ontology (GO) analysis in terms of (d) biological processes, (e) cellular components and (f) molecular functions of differentially expressed proteins and (g) their relative abundance of NaLS-treated rice. (h) KEGG pathway analysis of differentially expressed proteins found in NaLS-treated rice compared to MSO.
