Figure 5

From: Sodium lignosulfonate improves shoot growth of Oryza sativa via enhancement of photosynthetic activity and reduced accumulation of reactive oxygen species

Figure 5

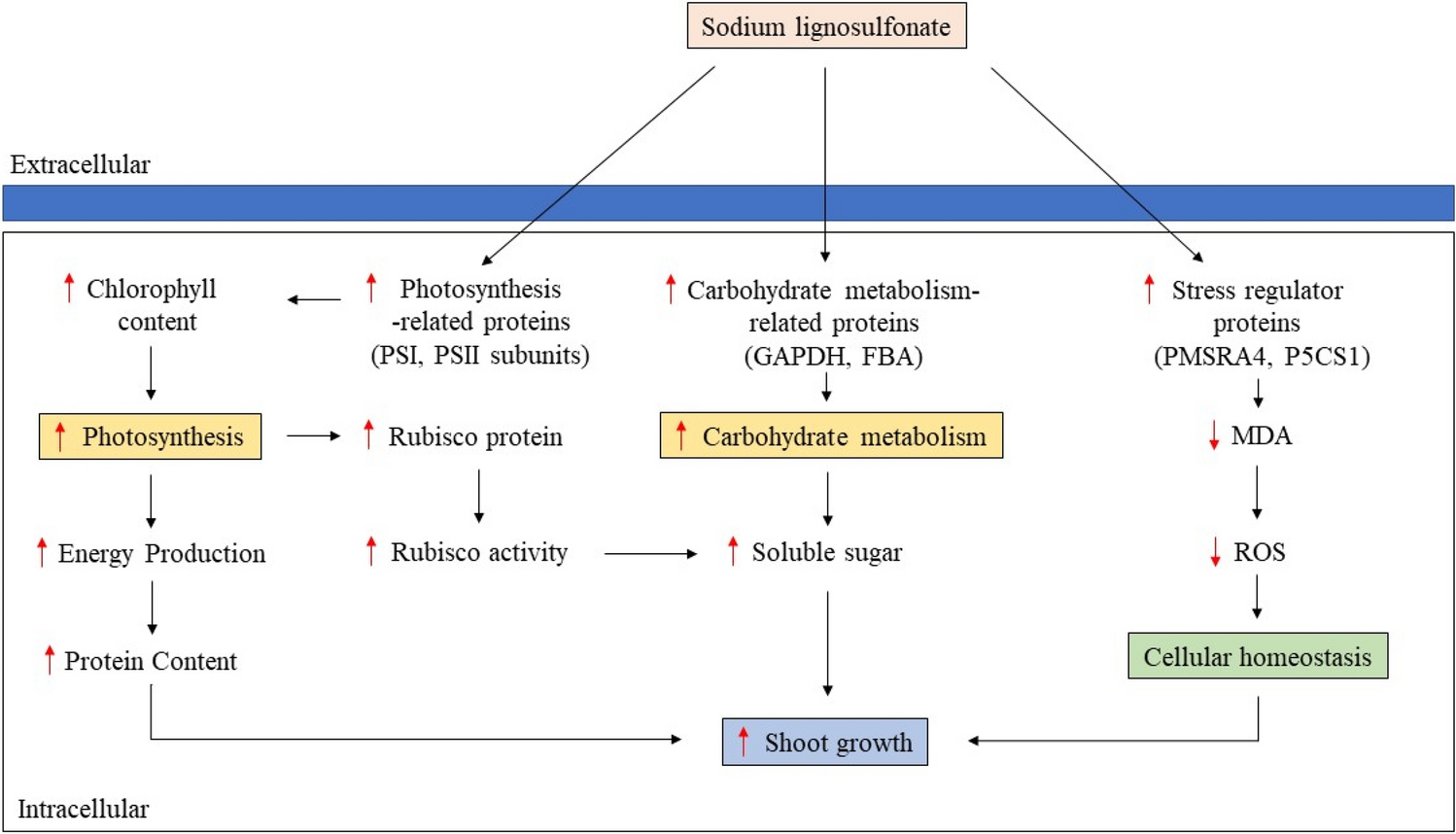

Proposed mode of action of NaLS on MR 219 during shoot growth. PSI photosystem I, PSII photosystem II, GAPDH glyceraldehyde-3-phosphate dehydrogenase 3, FBA fructose-bisphosphate aldolase, PMSRA4 peptide methionine sulfoxide reductase A4, P5CS1 delta-1-pyrroline-5-carboxylate synthase 1, Rubisco ribulose-1,5-bisphosphate carboxylase/oxygenase, MDA malondialdehyde, ROS reactive oxygen species, ↑ increased, ↓ decreased.
