Figure 4 | Scientific Reports

Figure 4

From: Cell-fate decision of mesenchymal stem cells toward osteocyte differentiation is committed by spheroid culture

Figure 4

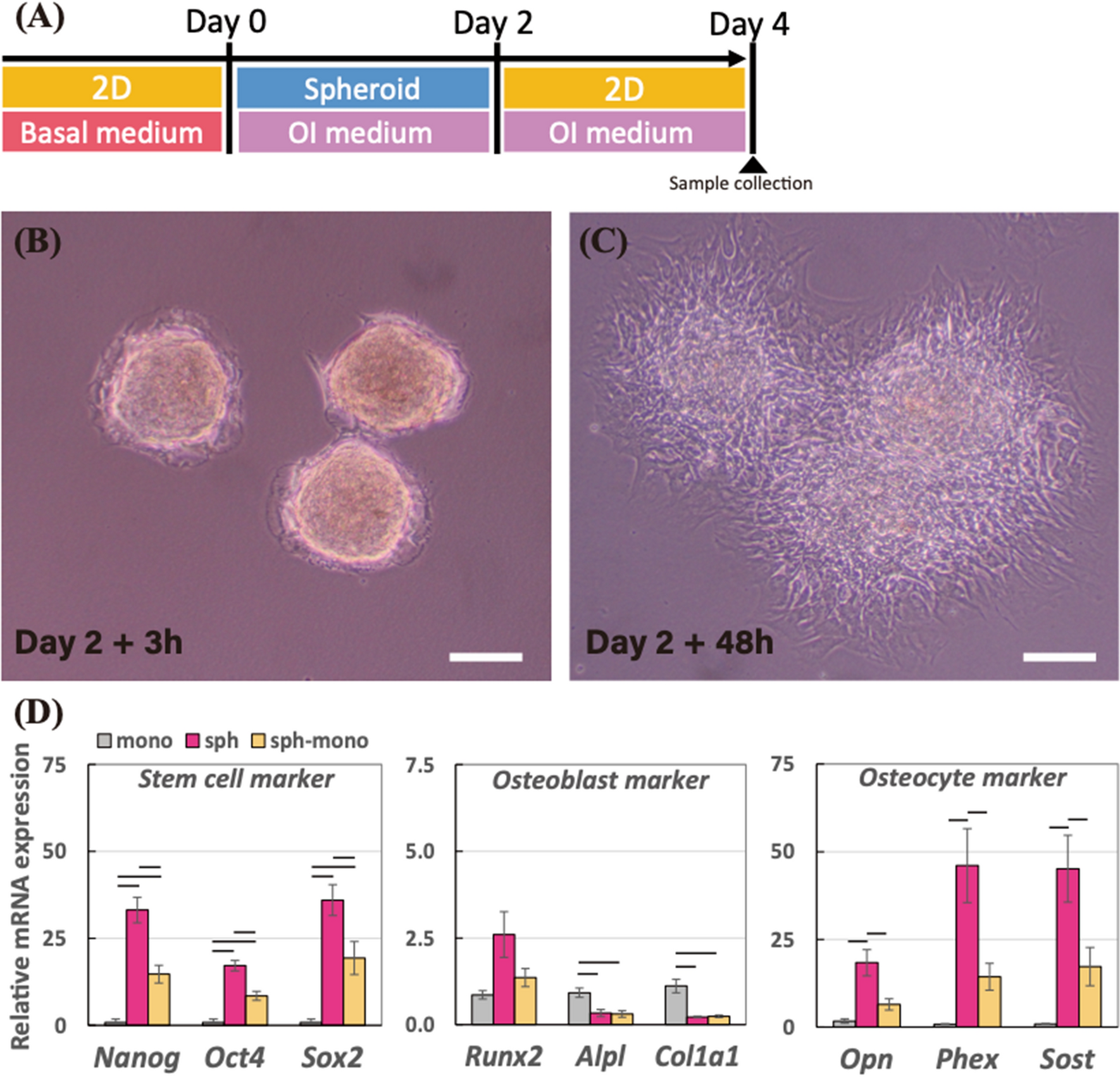

(A) Schematic of the experimental time line to prepare for cells dissociated from the spheroids (sph-mono) in the osteogenesis induction medium. Morphology of the spheroids transferred to the normal culture dish after (B) 3 h and (C) 48 h. The scale bar represents 200 μm. (D) Relative mRNA expressions of stem cell markers (Nanog, Oct4, and Sox2), osteoblast markers (Runx2, Alpl, and Col1a1), and osteocyte markers (Opn, Phex, and Sost) in monolayer and spheroid incubated for 4 days, and sph-mono were measured by real-time PCR. All the mRNA expressions were normalized to Gapdh expressions while the results were expressed as relative amounts against the expression of monolayer sample (n = 6). The graphs represent the mean ± standard error. Bar indicates the significance between groups, which was calculated from ANOVA with Tukey’s HSD post-hoc test (α = 0.05).
