Figure 12

From: Interactions of nasal epithelium with macrophages and dendritic cells variously alter urban PM-induced inflammation in healthy, asthma and COPD

Figure 12

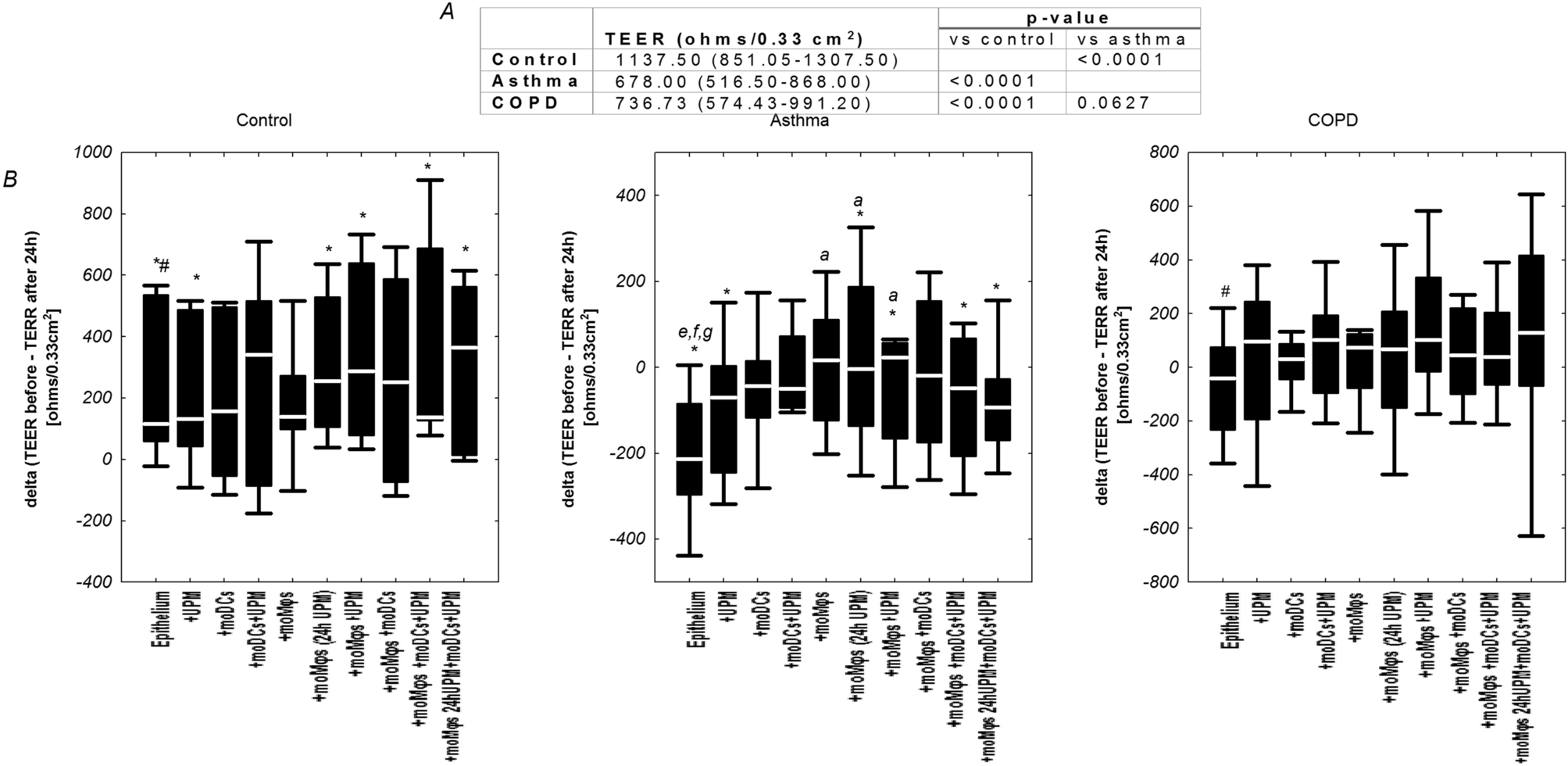

(A) The absolute TEER values of control, asthma, and COPD epithelial cells are shown in table. (B) The changes in trans epithelial electrical resistance (TEER) after 24 h of nasal epithelial cells from healthy donors, asthma and COPD cultured in air–liquid interface (ALI) conditions in multi co-culture models and UPM exposure.  p value calculated using Mann–Whitney U test p value  < 0.05 in comparisons * control versus asthma, # control versus COPD; a—epithelium, b—epithelium + UPM, c—epithelium + moDCs, d—epithelium + moDCs + UPM, e—epithelium + moMφs, f—epithelium + moMφs (24 h UPM), g- epithelium + moMφs + UPM, h—epithelium + moMφs + moDCs, i—epithelium + moMφs + moDCs + UPM, j—epithelium + moMφs (24hUMP) + moDCs + UPM.
