Figure 1
From: Interfacial coupling effect of Cr2O3 on the magnetic properties of Fe72Ga28 thin films

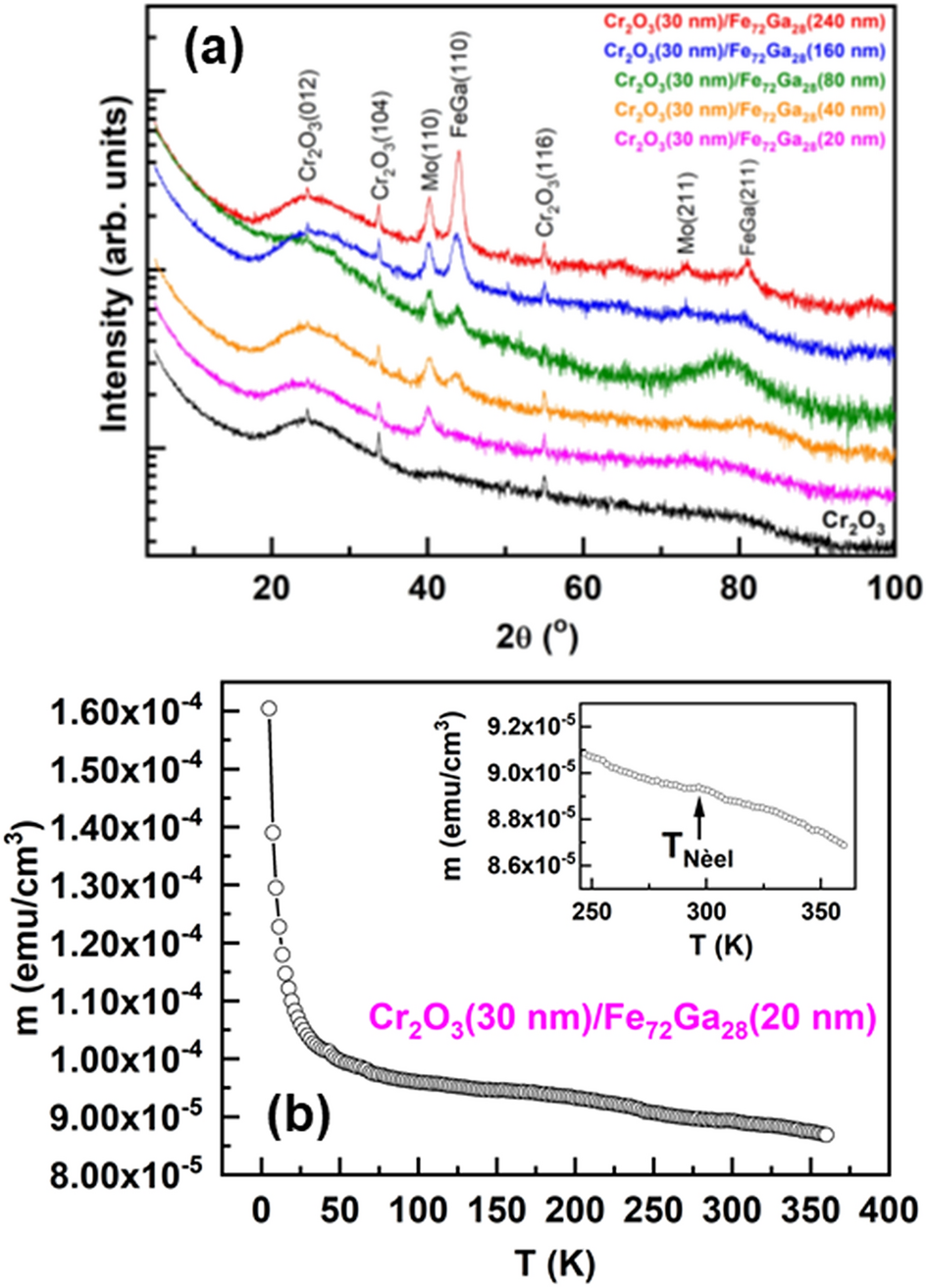

(a) XRD diffraction patterns of the samples studied in this work. The measurement for a 30 nm-thick Cr2O3 layer on glass has been included for further comparisons. Curves are shifted for clarity. (b) Magnetic moment versus temperature for the Cr2O3/Fe72Ga28(20 nm) sample. Inset: Detail of the measurement.
