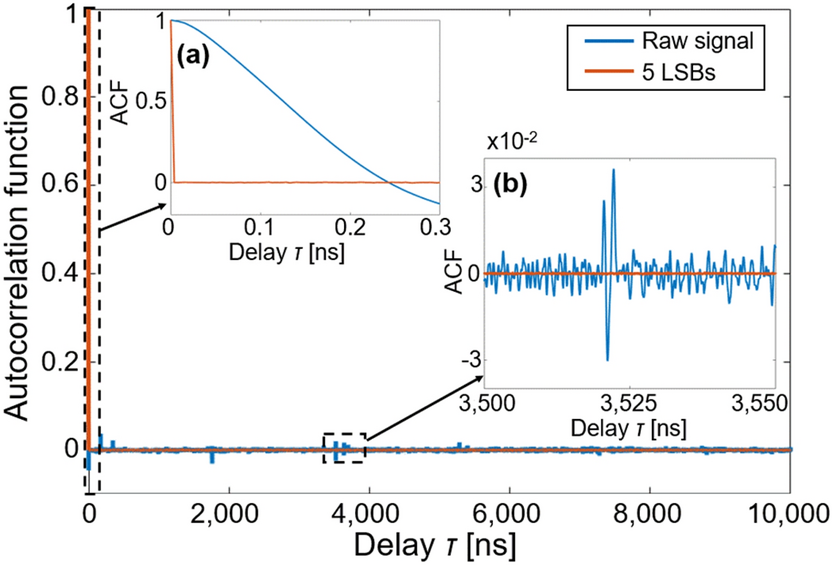

Figure 3

Autocorrelation of the first 10 µs for the raw signal (blue) and the 5 LSBs. Inset (a) shows that no correlation exists between the truncated bits after the first delay of 4 ps (since the ACF drops to 0 instantly), while inset (b) shows that taking the 5 LSBs removes all further existing correlation.
