Figure 1
From: Linkage mapping and QTL analysis of flowering time in faba bean

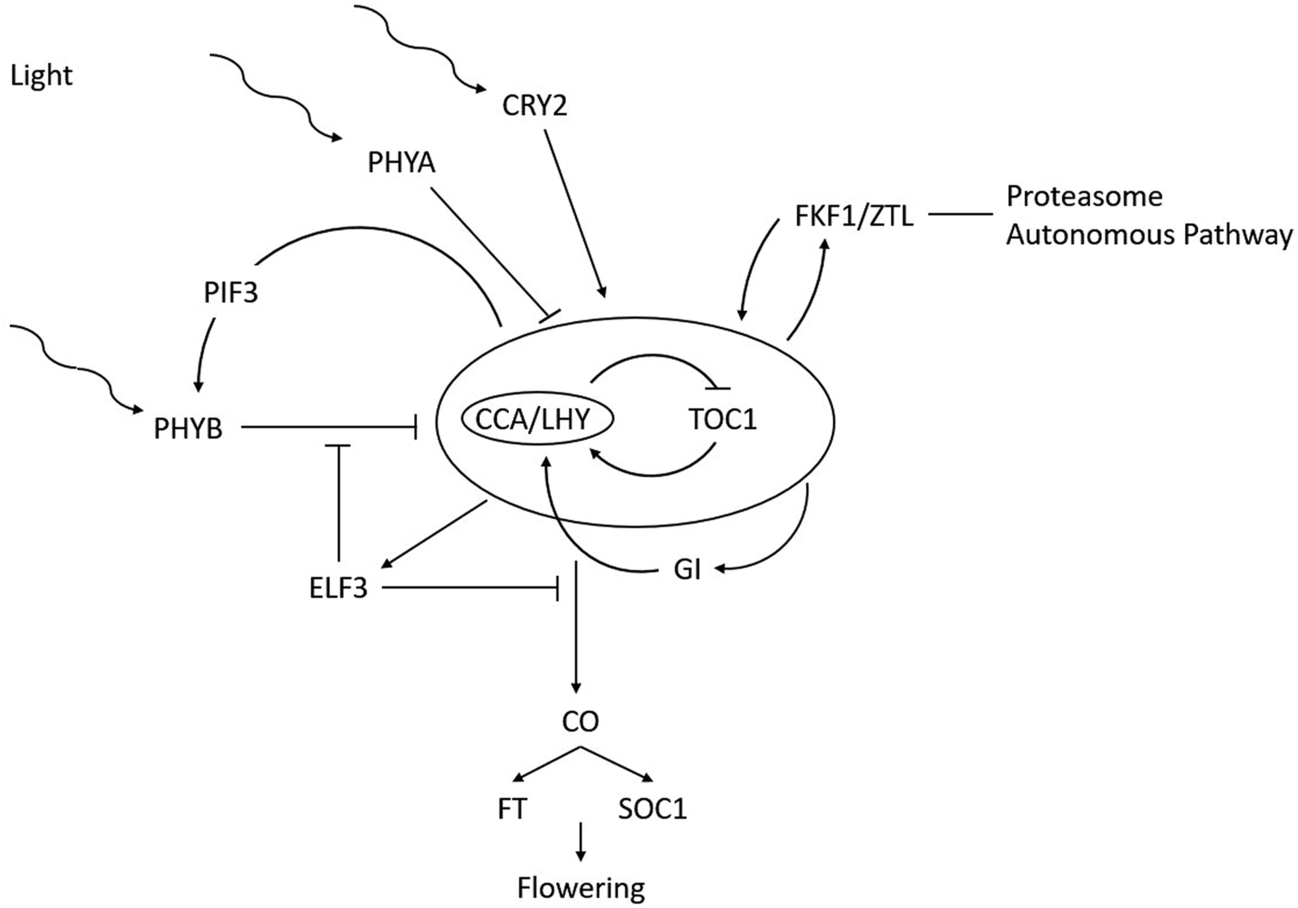

Schematic model of the genetic pathway of flowering time control by the photoperiod. The central circle represents the circadian clock. Modified from Mouradov et al. (2002).
