Figure 4
From: Identifying ENSO-related interannual and decadal variability on terrestrial water storage

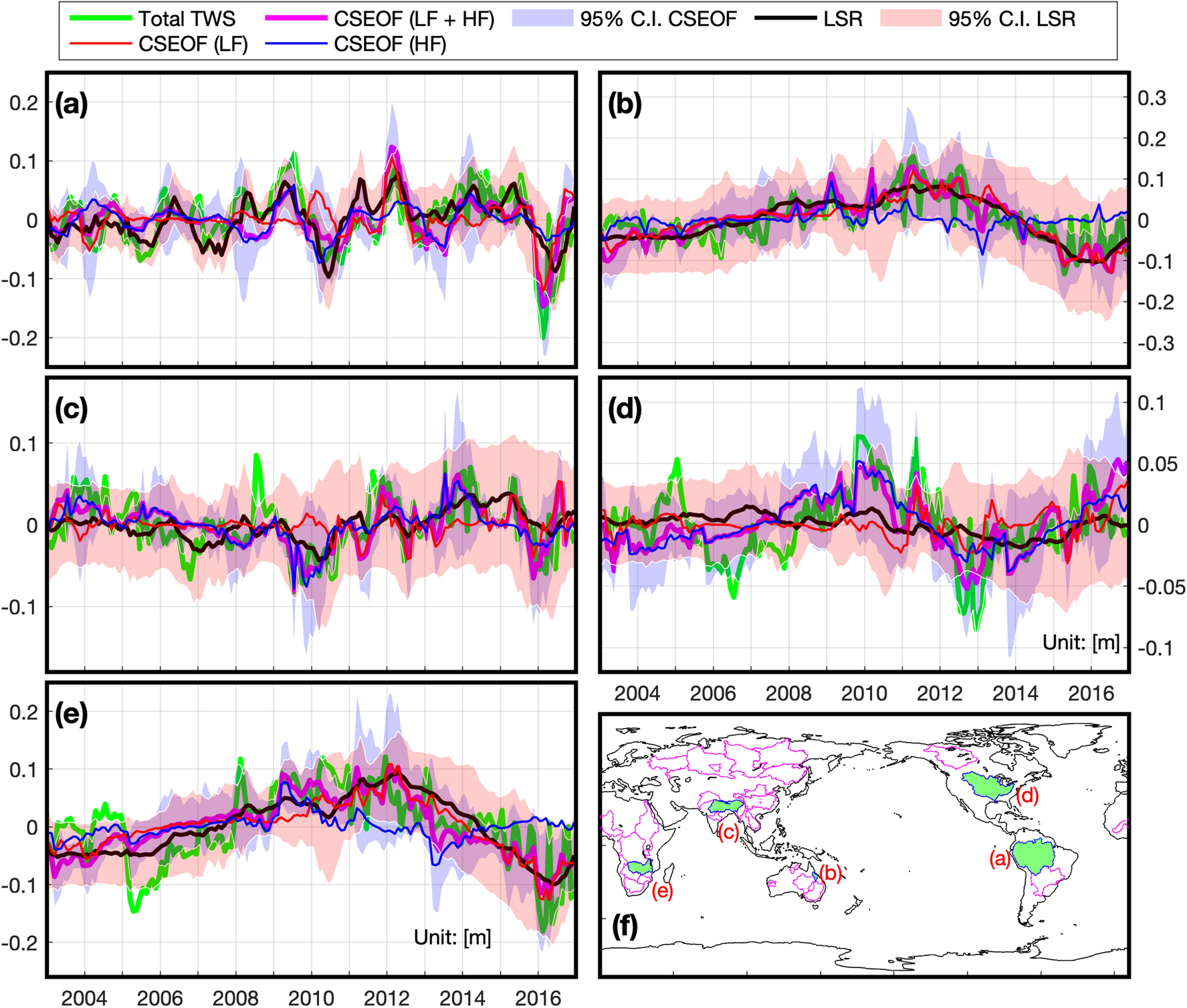

Spatial-mean time-series of regional ENSO-related TWS; (a) the Amazon River, (b) the Burdekin River, (c) the Ganges Brahmaputra River, (d) the Mississippi River, (e) the Zambezi River, and (f) the location of each river-basin (green-filled areas: (a–e) and magenta lines: for Table 1); Green: total TWS, Orange: ENSO-related TWS by CSEOF (LF + HF), Black: ENSO-related TWS by LSR, Red: CSEOF LF-mode, Blue: CSEOF HF-mode. The map and graphs were created using MATLAB (version R2020b; https://www.mathworks.com/products/matlab.html).
