Figure 6
From: Lanthanide (Ce, Nd, Eu) environments and leaching behavior in borosilicate glasses

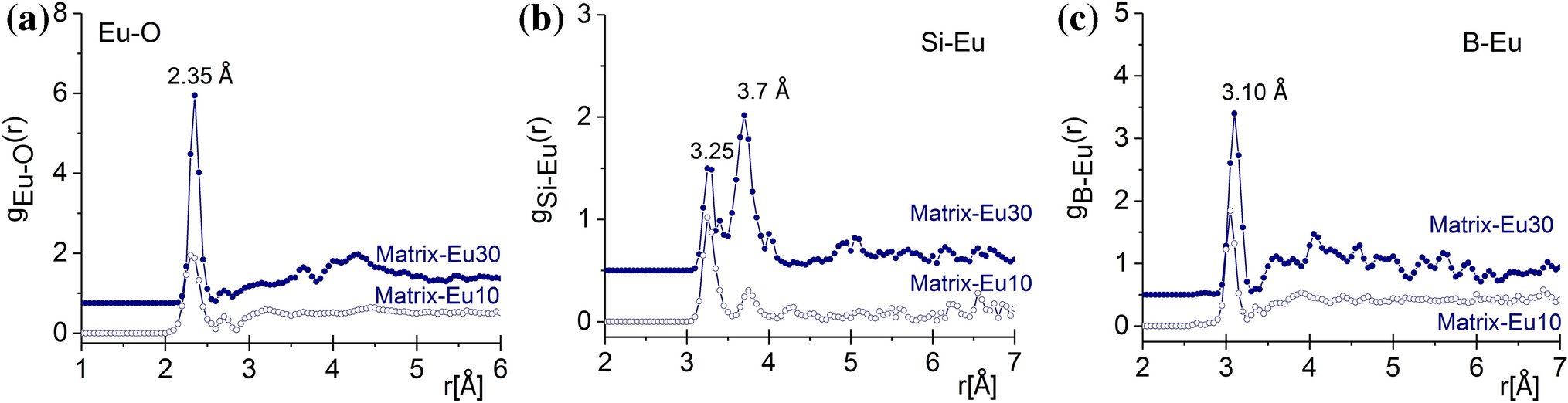

The partial atomic pair correlation functions obtained by RMC simulation for the Eu–O (a), Si-Eu (b) and B-Eu (c) for the Matrix-Eu(10/30) glasses. For better visibility, the curves were shifted vertically.
