Figure 2
From: Earthquakes and very deep groundwater perturbation mutually induced

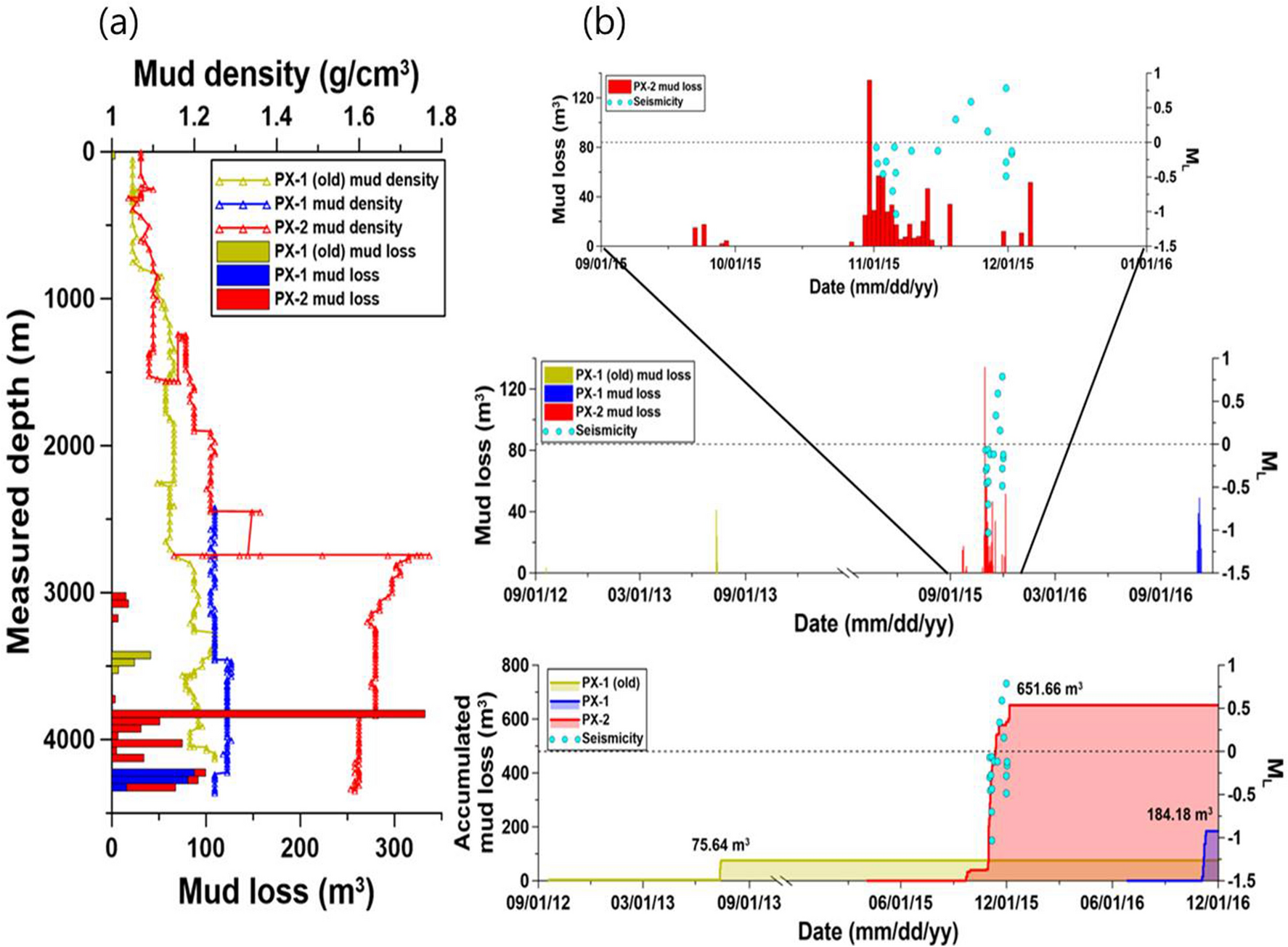

(a) Volume of mud loss and mud density of the PX-1 (old), PX-1, and PX-2 wells at specific depths during the drilling periods and (b) the temporal distribution of accumulated mud loss and seismicity.
