Figure 7
From: Earthquakes and very deep groundwater perturbation mutually induced

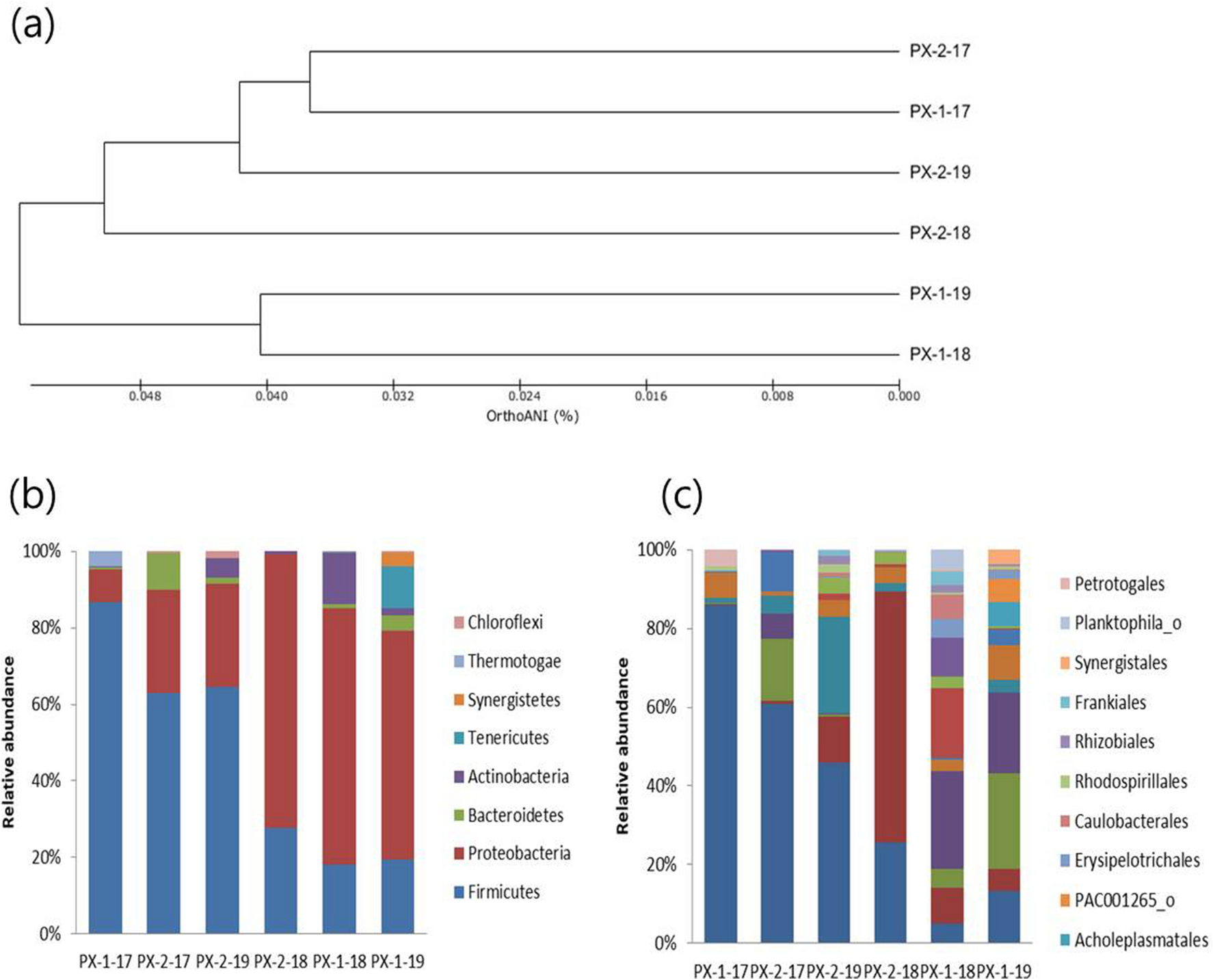

(a) Hierarchical clustering of bacterial communities in PX-1 and PX-2 sampled after the MW 3.2 (PX-1–17 and PX-2–17) earthquake, MW 5.5 earthquake in August 2018 (PX-1–18 and PX-2–18), and in April 2019 (PX-1–19 and PX-2–19). Relative sequence abundances of bacteria taxa in PX-1 and PX-2 at the (b) phylum and (c) order levels.
