Figure 2 | Scientific Reports

Figure 2

From: Impact of proton therapy on antitumor immune response

Figure 2

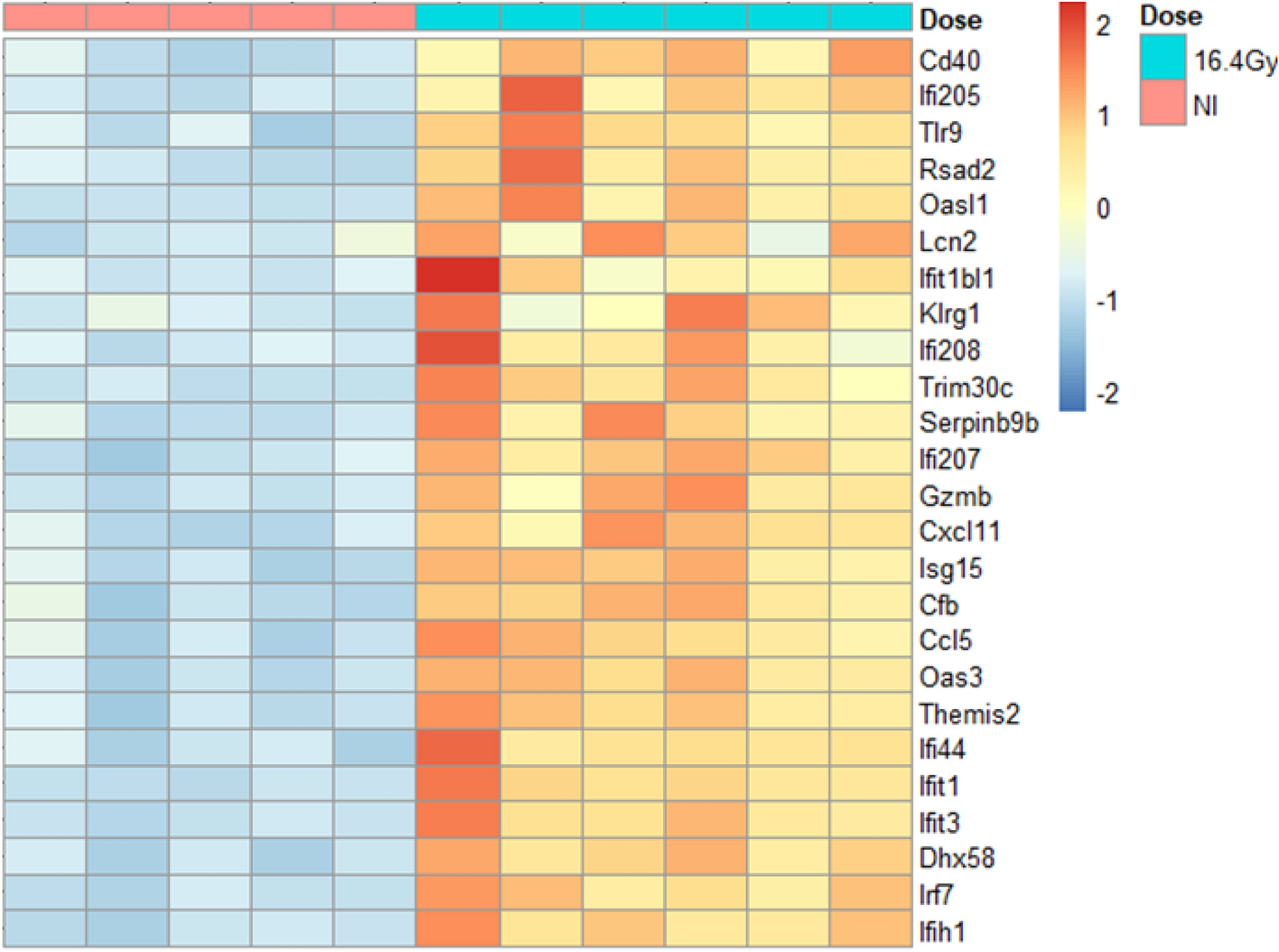

Heatmap representing “immune response” biological process, with 25 genes differentially expressed, at 3 days post-irradiation. Comparison between 16.4 Gy (green) and non-irradiated controls (NI, pink) of CT26 tumors. RNA-Seq profiling analysis was assessed with R software (R version 4.0.3) according to guidelines21. s-value < 0.005 and a Fold Change ≥ 2. Groups contained 5 mice for NI and 6 mice for 16.4 Gy.
