From: Genetic basis and network underlying synergistic roots and shoots biomass accumulation revealed by genome-wide association studies in rice

Figure 2

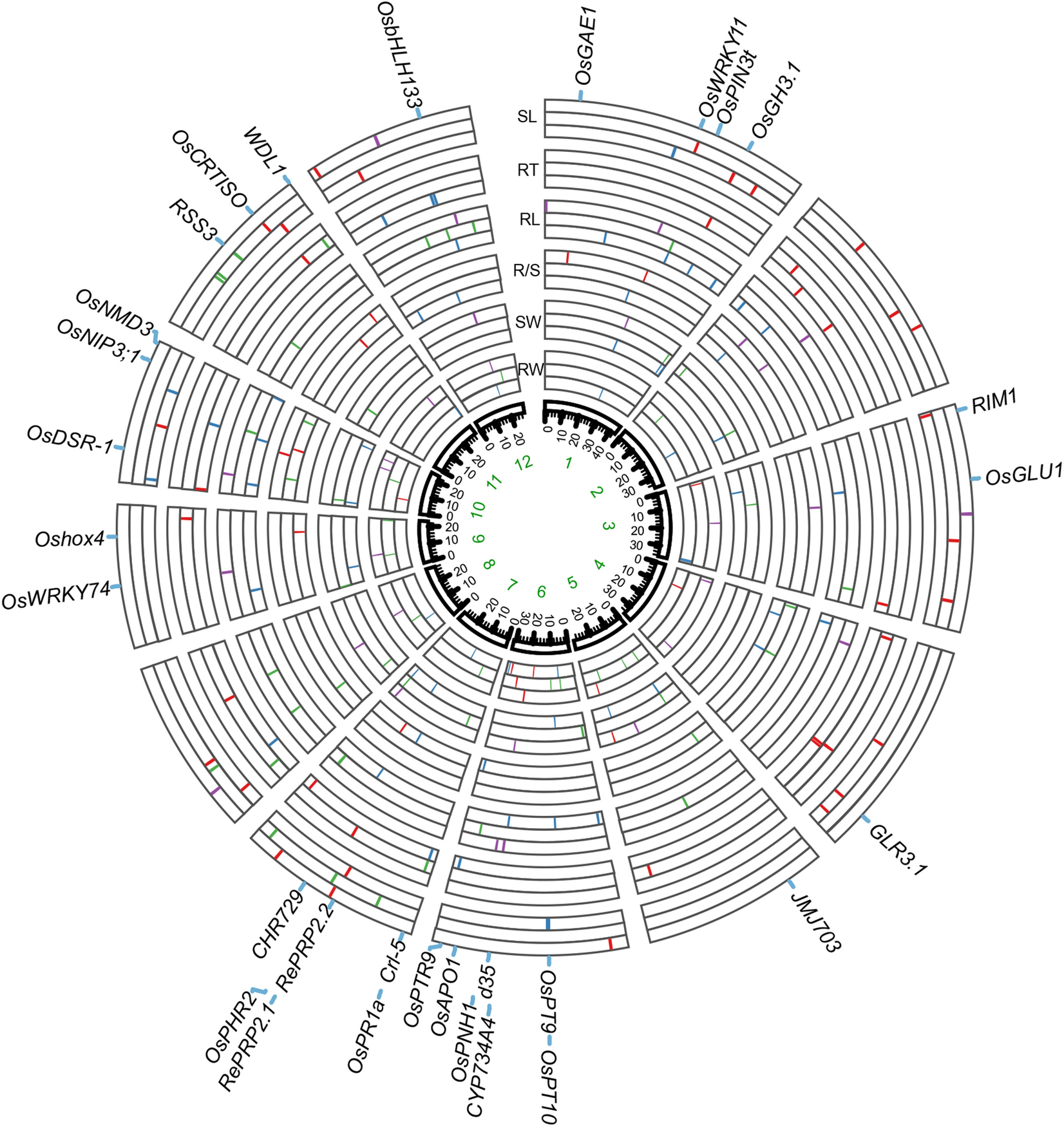

Circos map of all association signals for six traits of rice seedling biomass in the full population (inner layer), indica (middle layer) and japonica (outer layer). Signals identified in full population, indica and japonica are colored in blue, green and violet, and signals colored red show QTLs have observed in previous studies. Thirty known genes around the association signals are labeled in the outermost layer.
