From: Influence of acetylene on methane–air explosion characteristics in a confined chamber

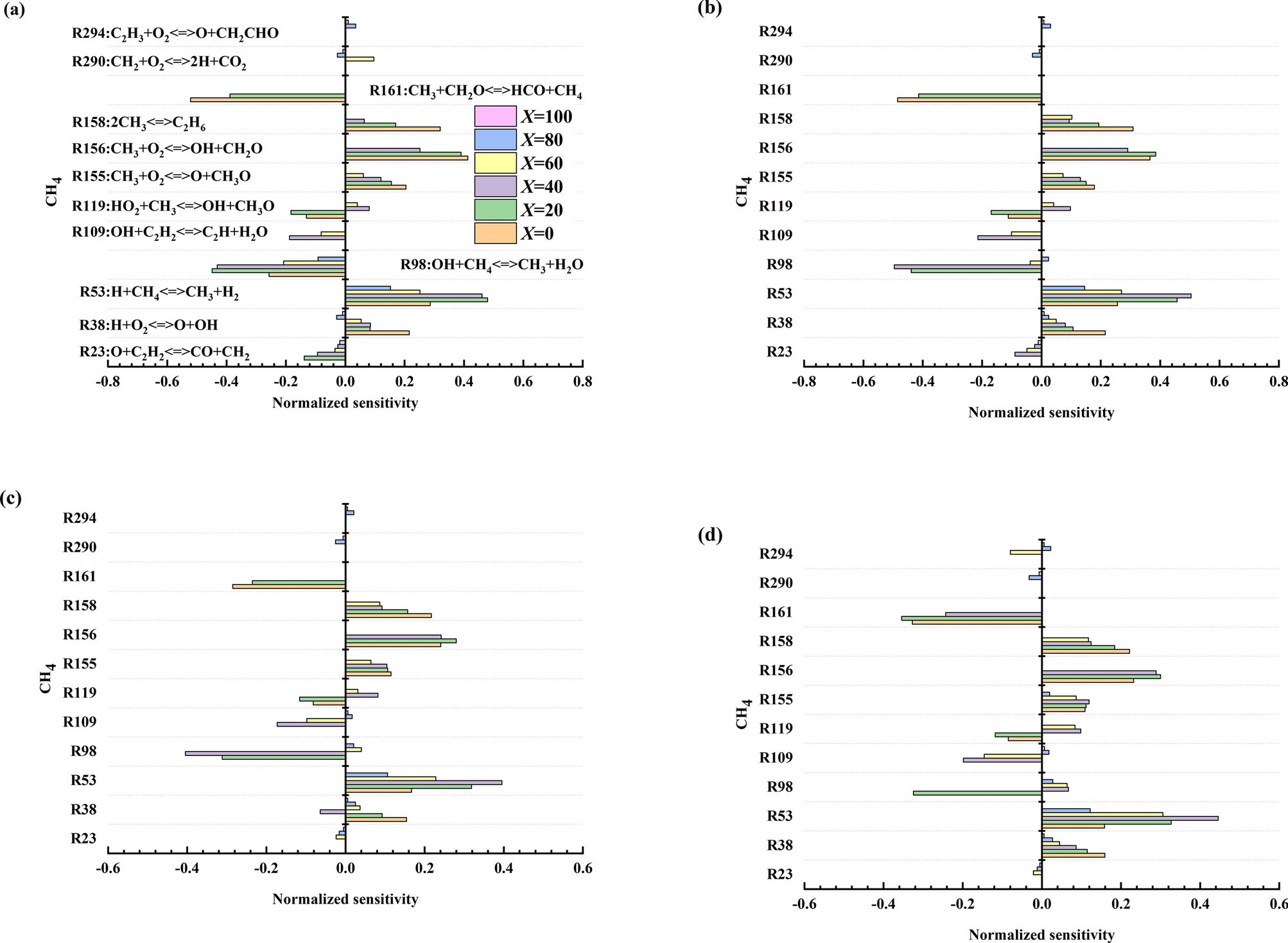

Normalized methane sensitivity coefficients for four equivalent ratios [(a) Φ = 0.8, (b) Φ = 1.0, (c) Φ = 1.2, (d) Φ = 1.4] during explosion.
