Figure 6

From: Analysis of variant-pairing tendencies in lenticular martensite microstructures based on rank-1 connection

Figure 6

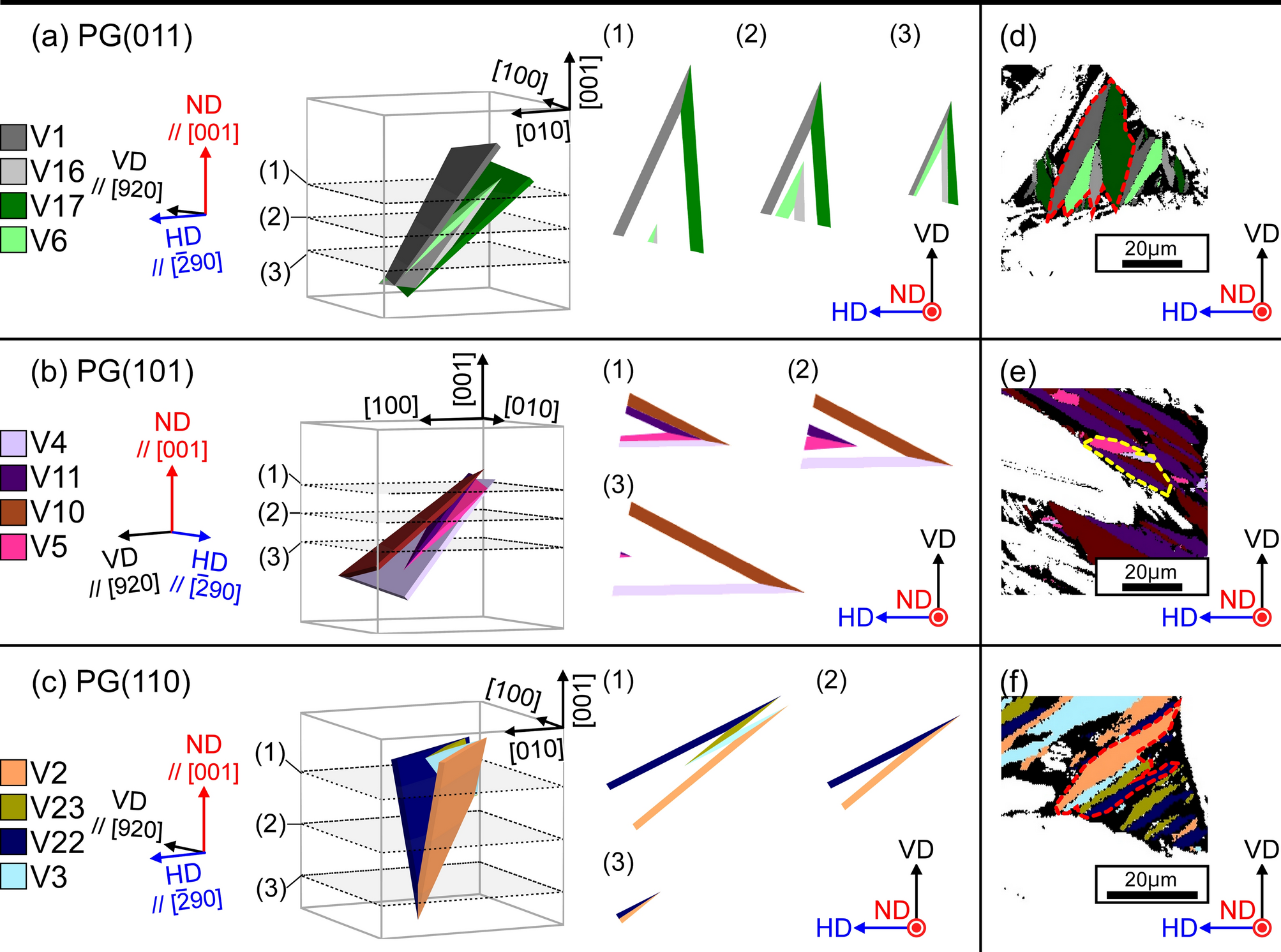

Simulated cross sections of CS clusters featuring variants belonging to (a) PG(011), (b) PG(101), and (c) PG(110). The planes surrounded by dashed lines correspond to observed surfaces. The ND-VD-HD coordinate system corresponds to the austenite in Fig. 2a. Corresponding clusters of four variants from Fig. 2a are shown in (d)–(f). Note that (e) corresponds to CS clusters shown in Fig. 4b–2.
