Figure 4
From: Tunable multichannel Photonic spin Hall effect in metal-dielectric-metal waveguide

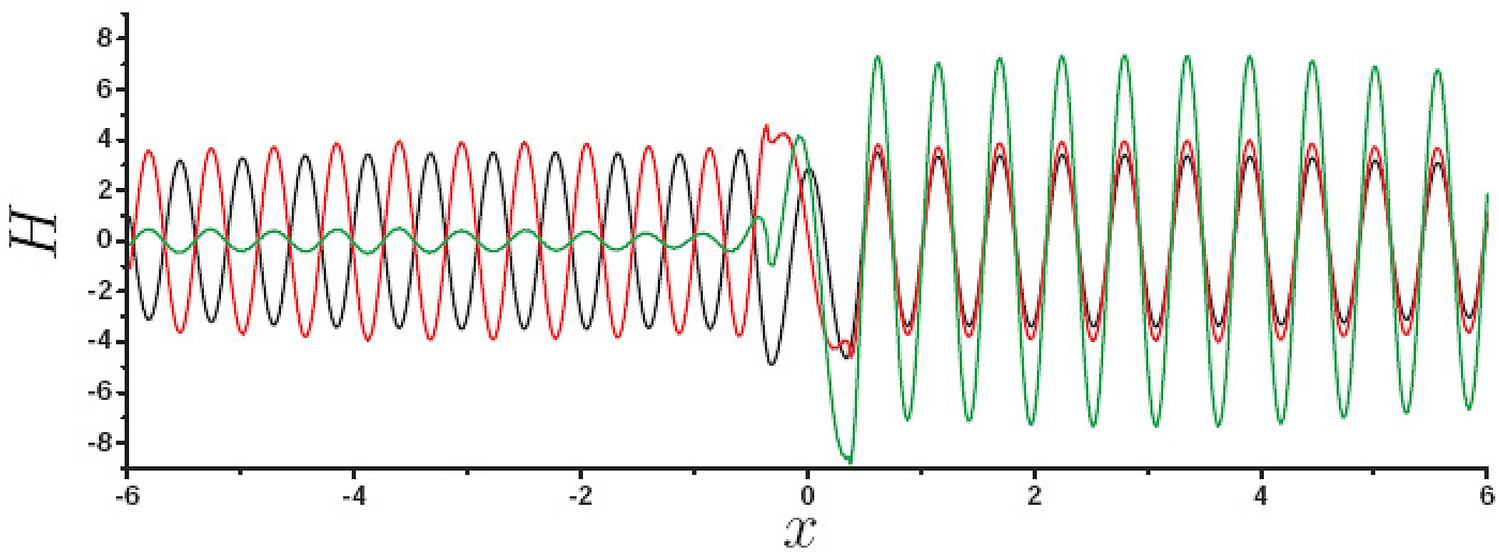

Surface field at \(z=6\, \upmu {\text{m}}\) as a function of x for different \(\vec{p}\), black curve for \(\vec{p}=cos70^{\circ }e^{-i\omega t} \hat{x}\), red curve for \(\vec{p}=sin 70^{\circ } e^{i130^{\circ }} \hat{z}e^{-i\omega t}\), and green curve for \(\vec{p}=(cos70^{\circ } \hat{x}+sin 70^{\circ }e^{i130^{\circ }} \hat{z})e^{-i\omega t}\).
