From: Biomechanical evaluation of the human mandible after temporomandibular joint replacement under different biting conditions

Figure 2

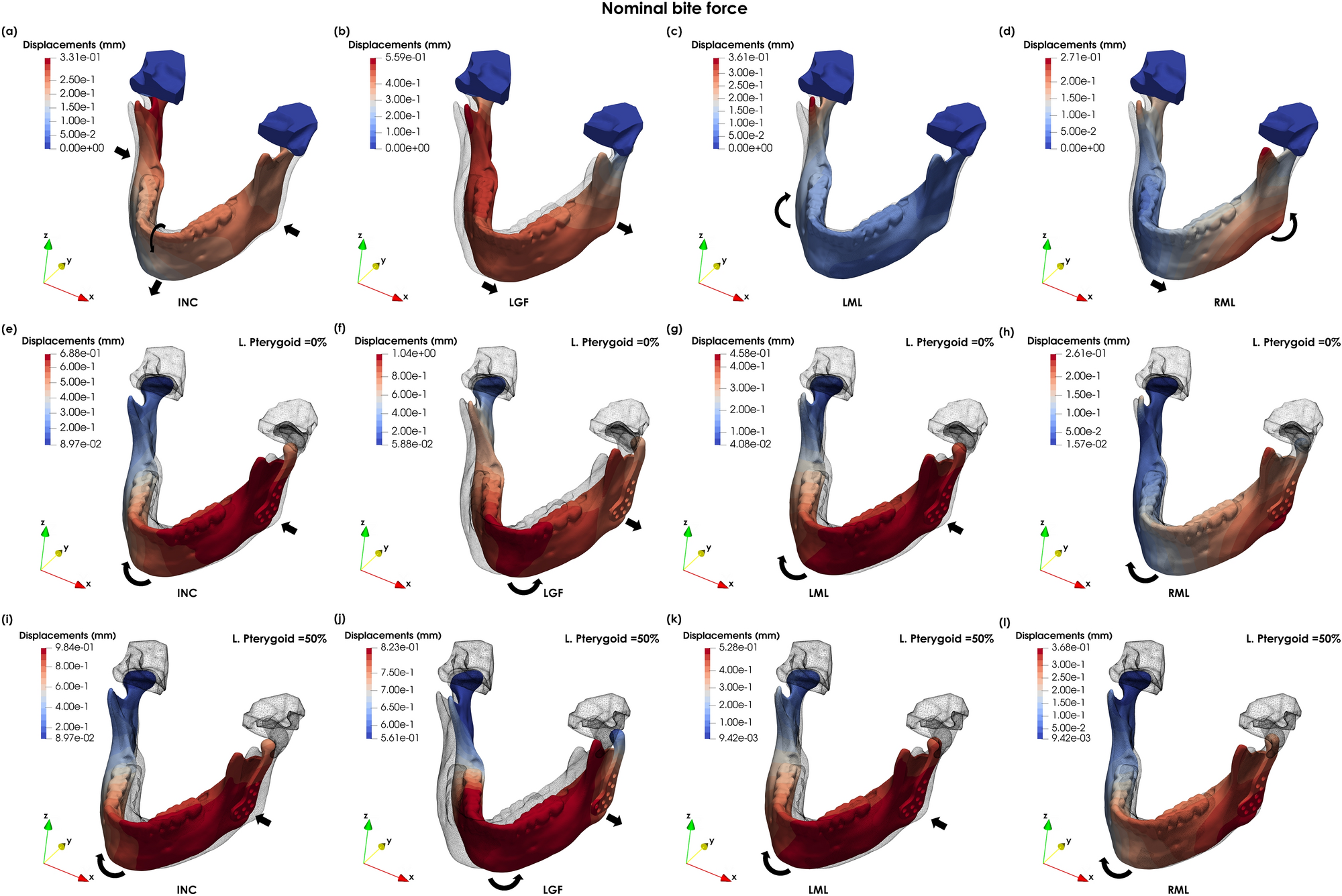

Magnitude of the displacements in the intact mandible during (a) INC (scaling factor × 15), (b) LGF (scaling factor × 15), (c) LML (scaling factor × 20) and (d) RML (scaling factor × 20); magnitude of the displacements in the implanted mandible during (e) INC (scaling factor × 15), (f) LGF (scaling factor × 10), (g) LML (scaling factor × 15), (h) and RML (scaling factor × 15) for the implanted mandible; (i) INC plus 50% lateral pterygoid (scaling factor × 15), (j) LGF plus 50% lateral pterygoid (scaling factor × 10), (k) LML plus 50% lateral pterygoid (scaling factor × 15), (l) and RML plus 50% lateral pterygoid (scaling factor × 15) for the implanted mandible (equivalently deformed intact mandible displayed as wireframe).
