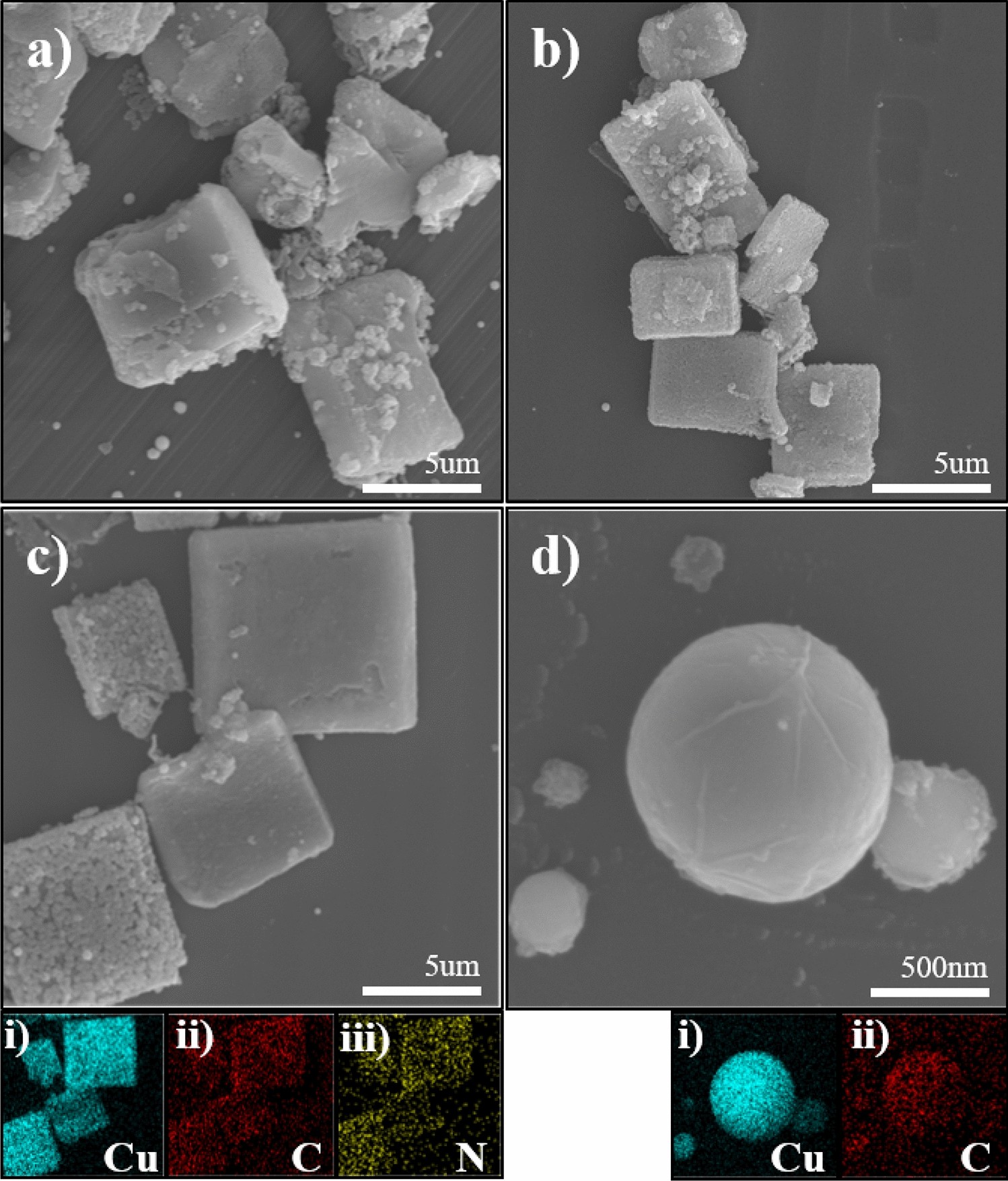

Figure 4

SEM images of samples prepared by PLA of a Cu plate in acetonitrile at (a) 355, (b) 532, (c) 1064 nm, and (d) spherical Cu NPs covered with carbon shells present in all of the above samples. EDS analysis of (c, i–iii) cubic species and (d, i–ii) spherical NPs.
