Figure 4

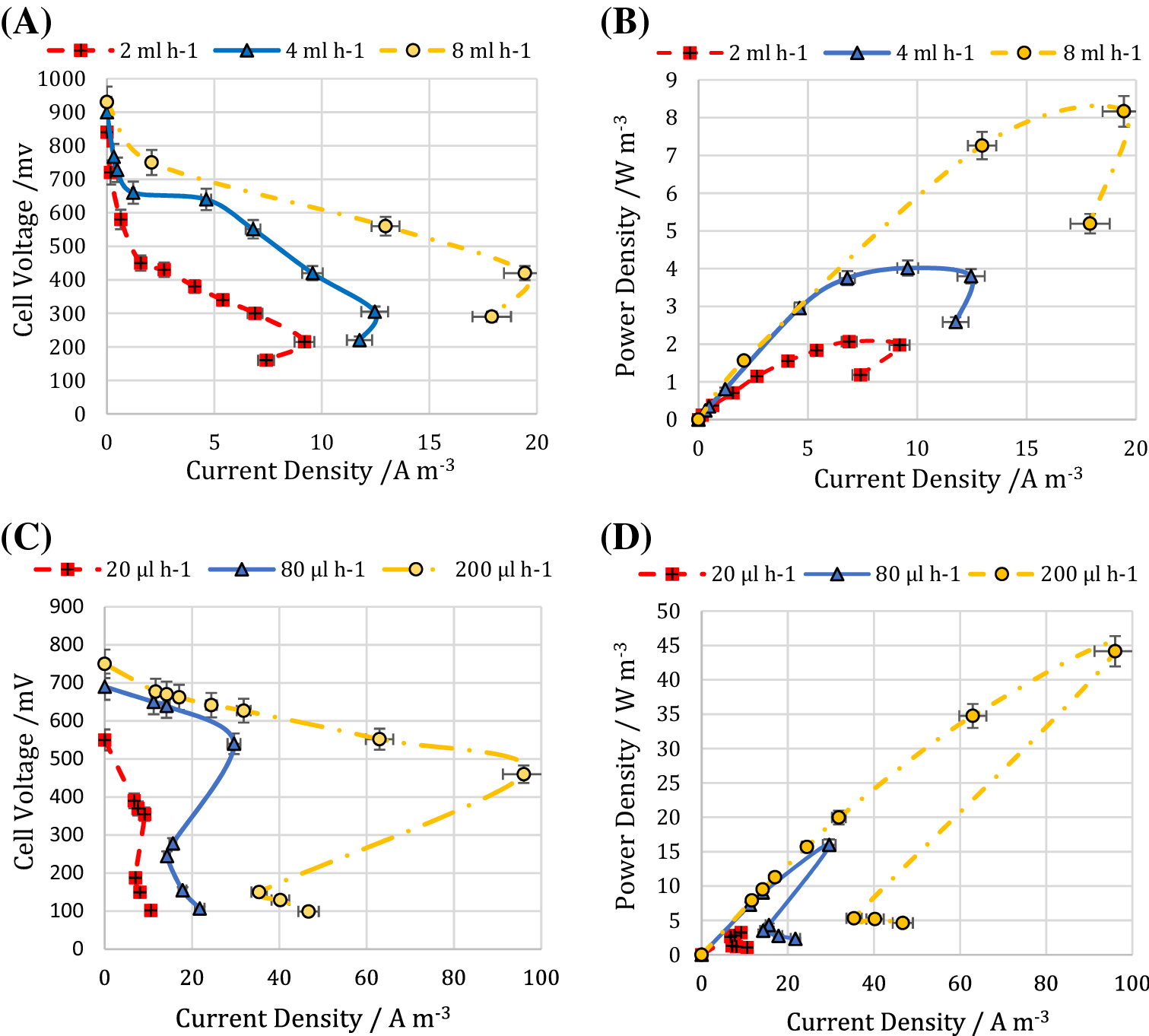

(A) polarization and (B) power density curves of the macro-scale MFC. (C) polarization and (D) power density curves of the micro-scale MFC. The error bars represent the variation of power and current densities among repeated experiments.
