From: Morphological response accompanying size reduction of belemnites during an Early Jurassic hyperthermal event modulated by life history

Figure 4

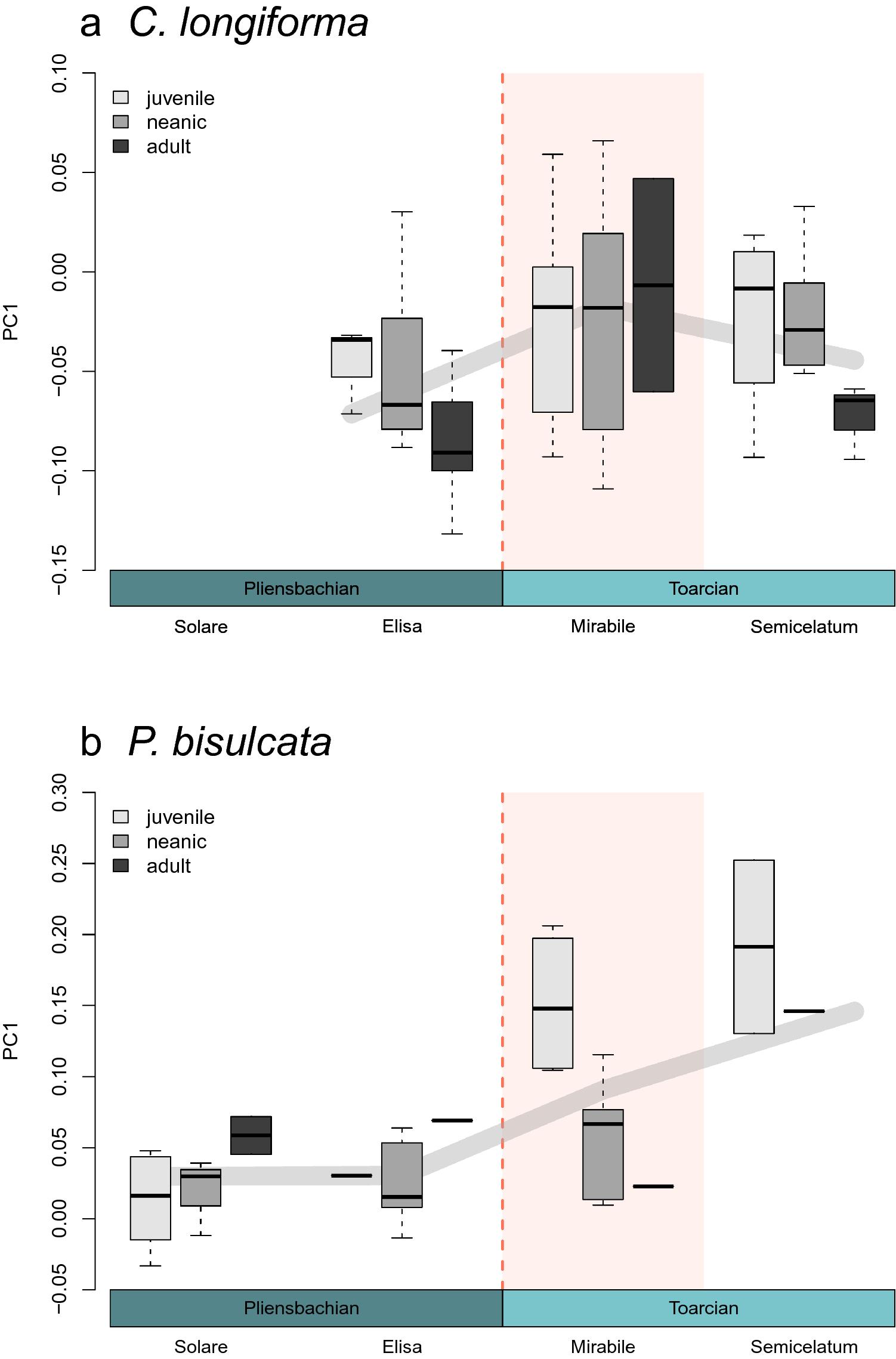

Robustness (PC1) of (a) C. longiforma and (b) P. bisulcata life stages by subzone. The thick grey lines indicate the overall robustness, while the overlaying boxplots are split by ontogenetic stage (left to right: juvenile (light grey), neanic (medium grey), adult (dark grey)). The red background in the first Toarcian subzone (Mirabile) indicates the hyperthermal stress from the PToB event. (see sample sizes in Table 1).
