Figure 2
From: Factors associated with baseline mortality in Norwegian Atlantic salmon farming

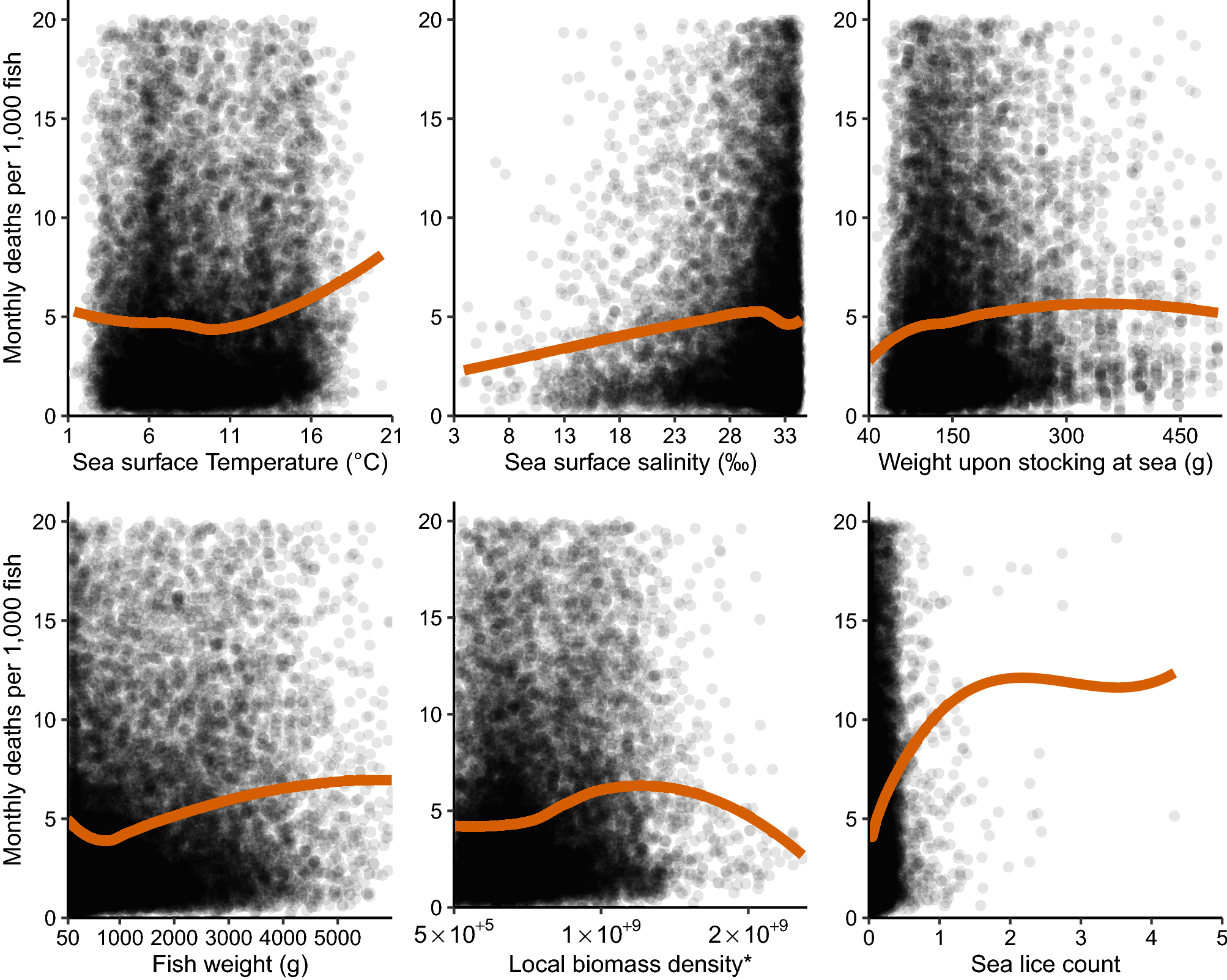

Scatter plots with fitted local polynomial regression (LOESS) curves of mortality versus continuous explanatory variables. *The local biomass density (LBD) of a farm in a certain month is a summarized record of Atlantic salmon biomass (i.e. number of fish multiplied by mean weight) calculated using data from neighboring farms located up to 40 km seaway distance. For full details on LBD calculations, we refer to Jansen et al.38. This figure was generated using the Tidyverse46 and gridExtra48 packages in R47.
