Figure 1

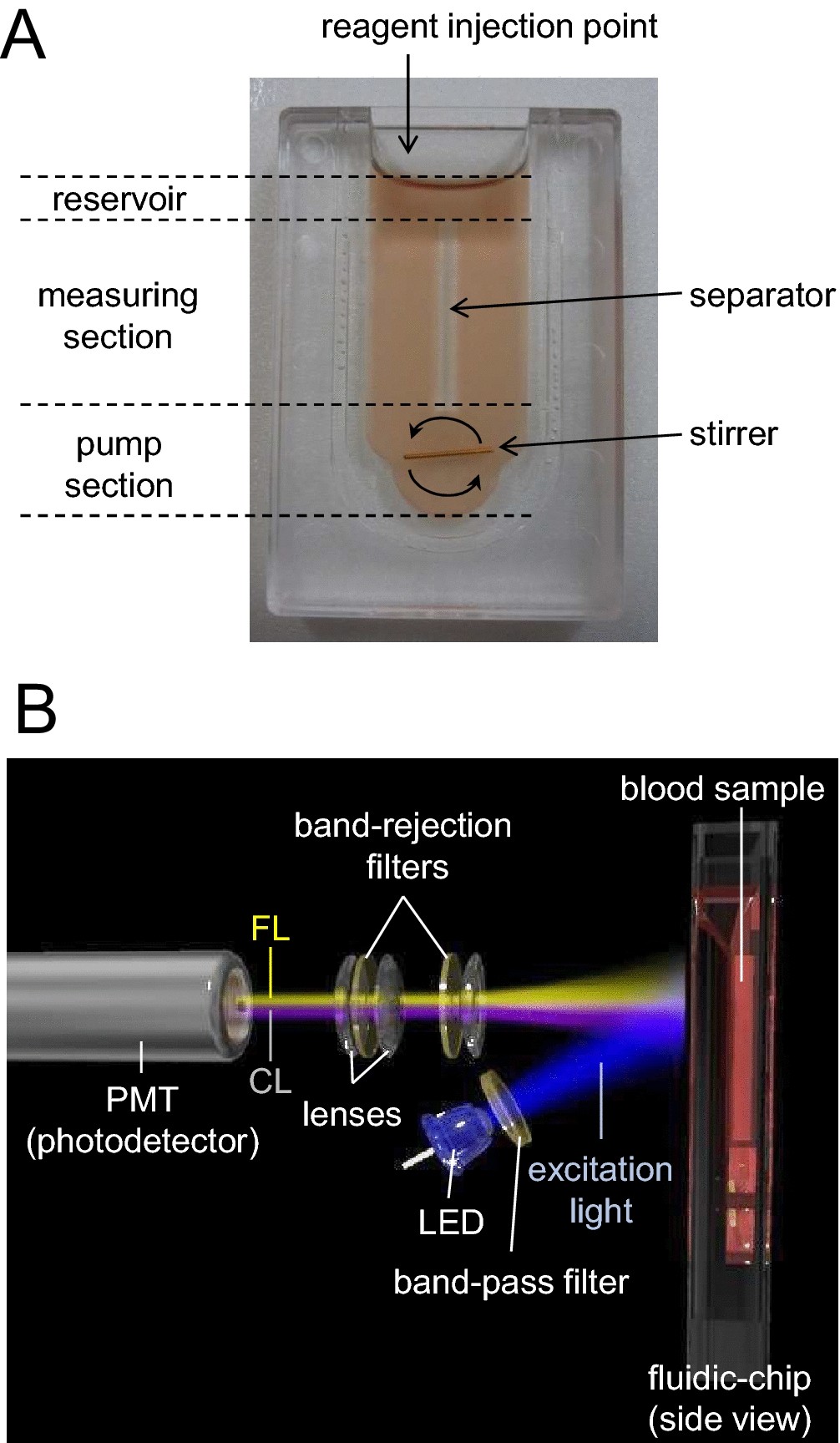

The fluidic-chip and optical configuration for the new system. (A) A picture showing the structure of the fluidic-chip (outer dimensions: width 28 mm, thickness 6 mm and height 41 mm; inner dimensions: width 13.4 mm, thickness 2 mm and maximum depth 33.5 mm; internal sample volume: 750 µL). (B) A schematic diagram of the optical configuration for CFL-H2200 and -H2400 models. Detailed explanations are described in “Materials and methods”. This 3D visualization in (B) was created with the help of Dr. Hiroshi Satozono (Hamamatsu Photonics K.K.).
