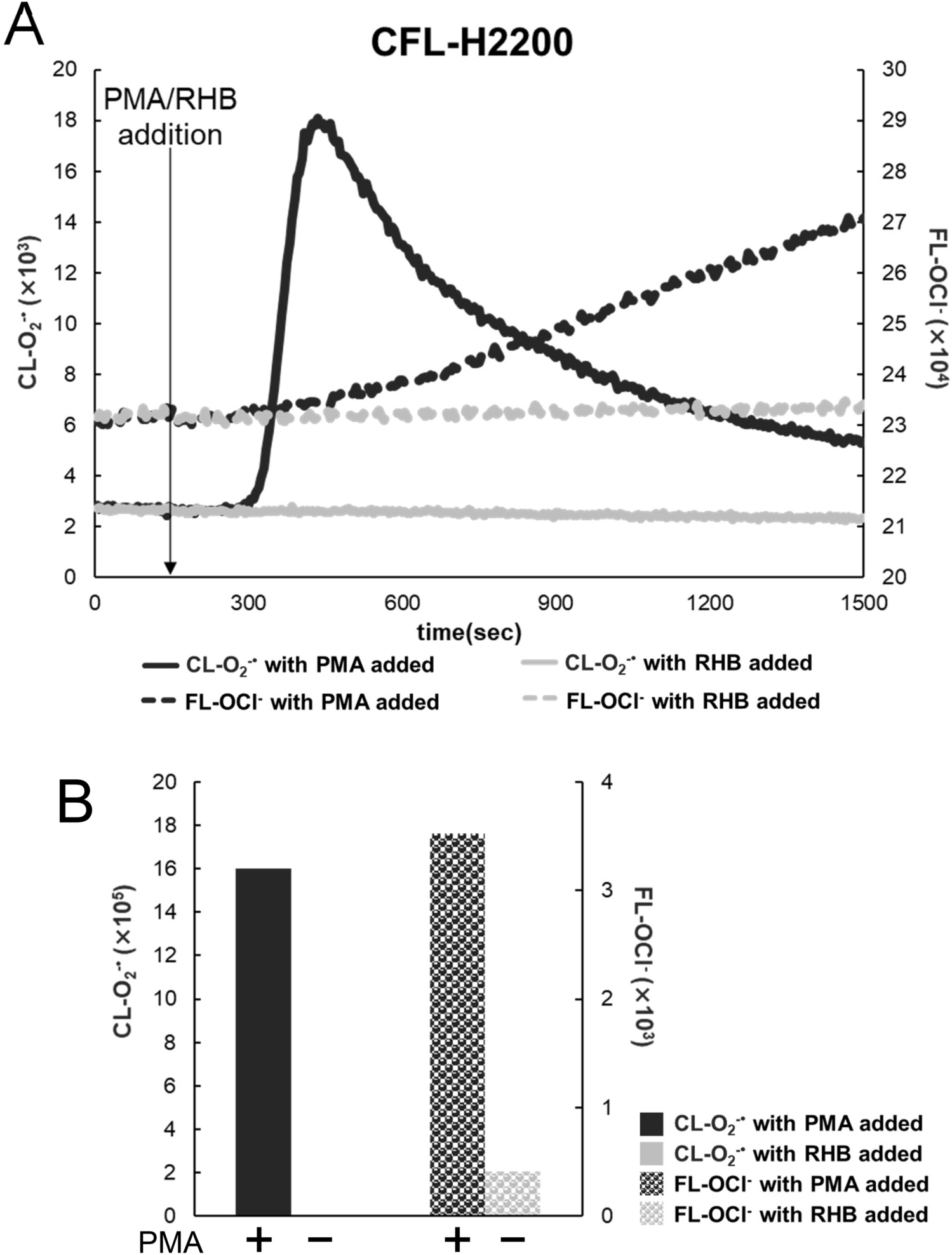

Measurements of CL-O2−· and FL-OCl− in blood by the fluidic-chip based system. (A) Time courses of CL-O2−· (solid lines) and FL-OCl− (dotted lines) in blood obtained by CFL-H2200. The left vertical axis shows CL-O2−· intensity; the right vertical axis, FL-OCl− intensity. PMA (dark lines) or RHB (light lines) was added at 150 s (arrow line). The baseline heights of FL-OCl− were adjusted at the same level. (B) Baseline-subtracted total amount of CL-O2−· and FL-OCl− with and without PMA calculated from the data in (A).
