Figure 4

From: Correlation between human health and reactive oxygen species produced in blood: a long-term chemiluminescence and fluorescence analysis

Figure 4Figure 4

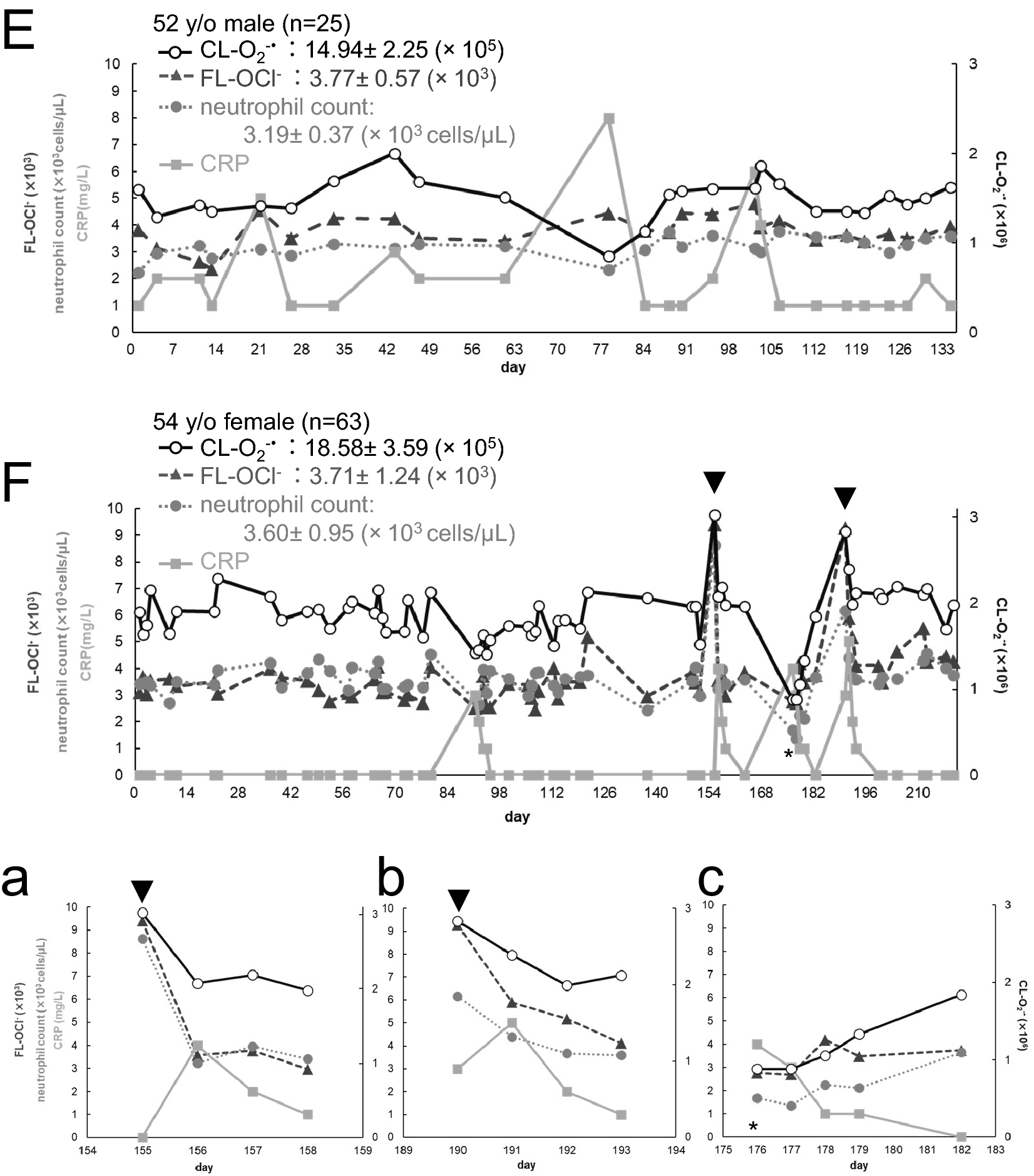

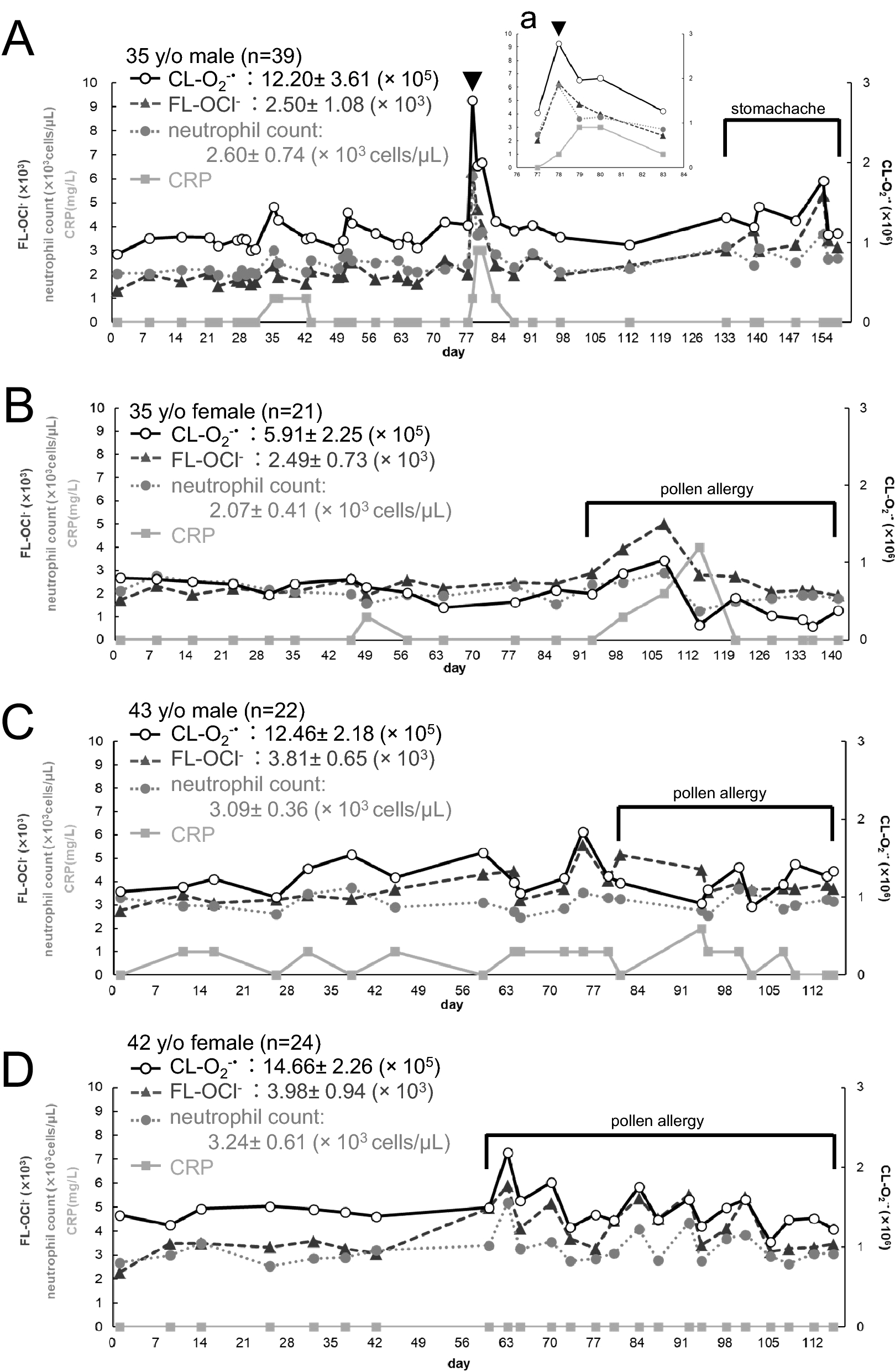

Day-to-day variations of CL-O2−· and FL-OCl− in six healthy subjects. Scatter plots showing the day-to-day fluctuations of CL-O2−· (○ solid line), FL-OCl− (▲ dashed line), neutrophil counts (● dotted line), and CRP (■ solid line) in six healthy volunteers. The left vertical axes indicate FL-OCl−, neutrophil counts and CRP; the right vertical axes, CL-O2−·. The horizontal axes indicate dates (weekly intervals) during the measurements. The mean values of CL-O2−·, FL-OCl− and neutrophil counts, and variation ranges of them were indicated at the upper left in each figure. (A) 35 y/o male (n = 39), (a) partially expanded view (Day 76–84). (B) 35 y/o female (n = 21). (C) 43 y/o male (n = 22). (D) 42 y/o female (n = 24). (E) 52 y/o male (n = 25). (F) 54 y/o female (n = 63), partially expanded view (a): Day 154–159, (b): Day 189–194, (c): Day 175–183.
