Figure 5

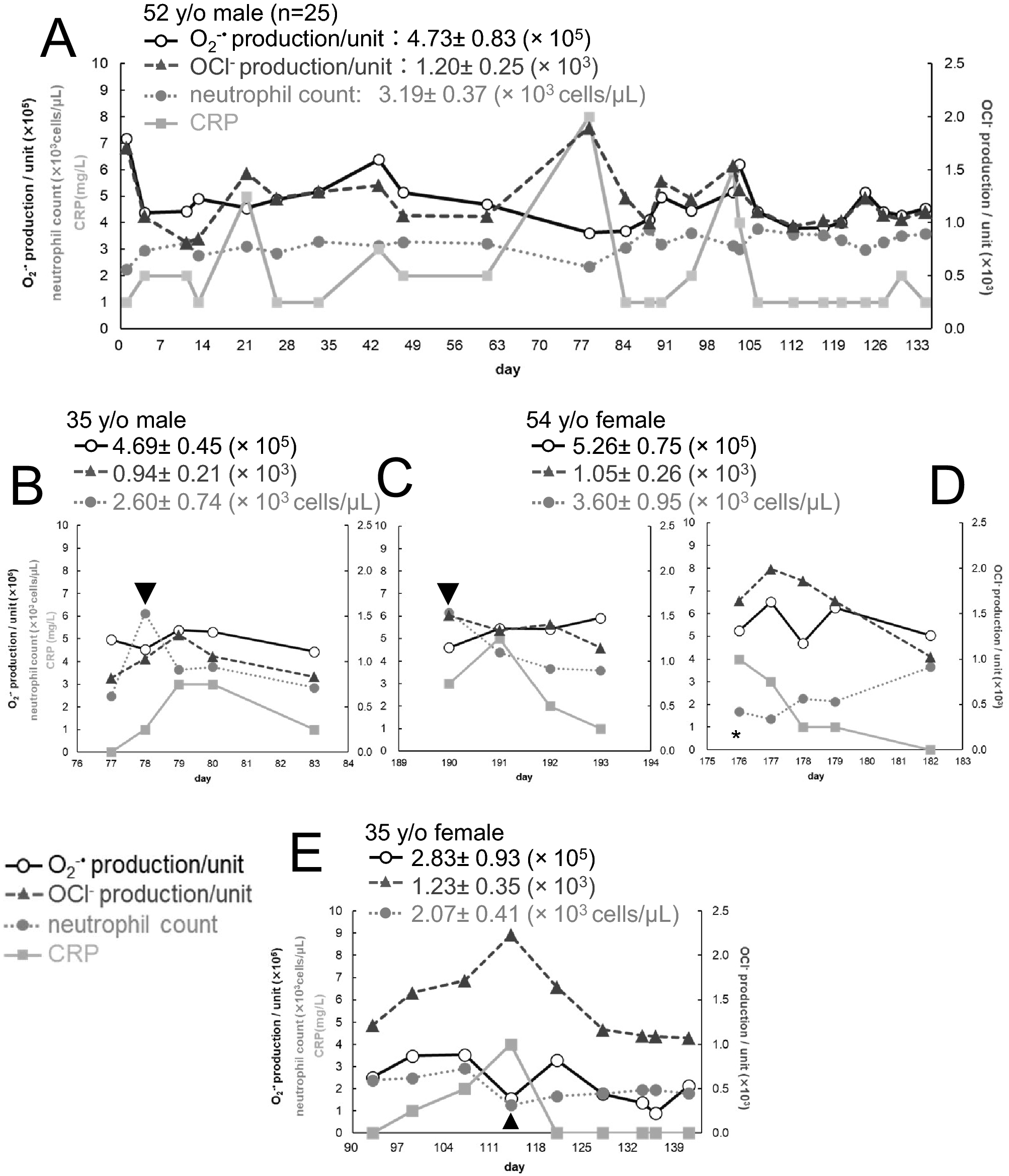

Day-to-day variations of the cellular ROS production capacities. Scatter plots showing the day-to-day fluctuations of the O2−· production/unit (○ solid line), the OCl− production/unit (▲ dashed line), the neutrophil counts (● dotted line), and CRP (■ solid line). The left vertical axes indicate the O2−· production/unit, the neutrophil counts and CRP; the right vertical axes, the OCl− production/unit. The horizontal axes indicate dates (weekly intervals) during the measurements. The mean values of the O2−· production/unit, the OCl− production/unit and the neutrophil counts together with the variation ranges of them were indicated at the upper-left in each figure. (A) 52 y/o male (complete data) as an example of six subjects. (B) 35 y/o male, partially expanded view (Day 76–84). (C) 54 y/o female, partially expanded view (Day 189–194). (D) 54 y/o female, partially expanded view (Day 175–183). (E) 35 y/o female, partially expanded view (Day 90–143).
