Figure 4
From: Community structure and metabolic potentials of the traditional rice beer starter ‘emao’

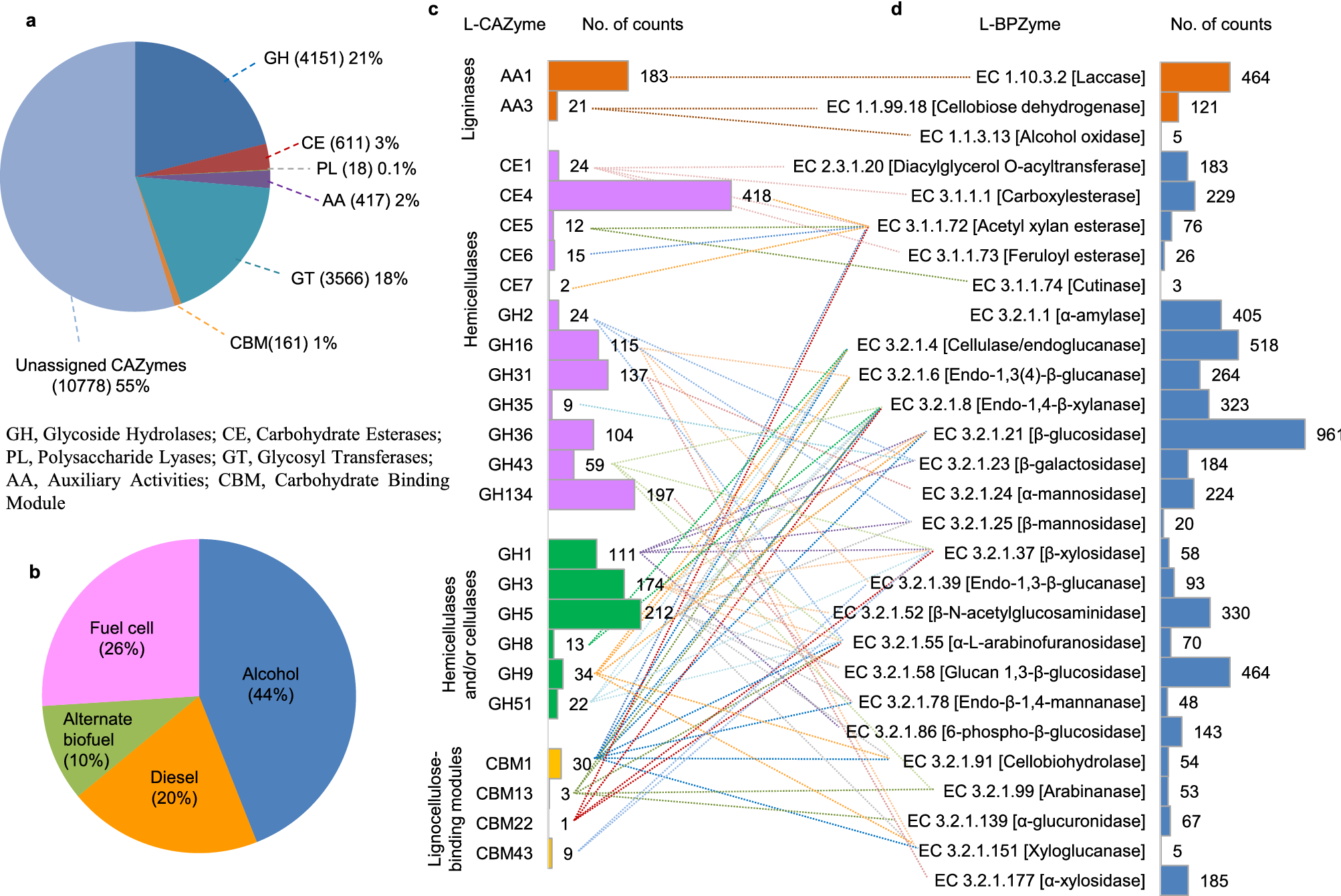

Lignocellulolytic enzymes predicted in emao based on carbohydrate-active enzymes (CAZymes) and biofuel producing enzymes (BPZymes) analyses. A complete list of CAZymes and BPZymes as recorded in emao is given in Supplementary Data Fig. S1 & S2, respectively. (a) Pie chart indicating the percentage of CAZyme families assigned by Hotpep. The value within parentheses is the total count. (b) Relative percentage of BPZyme categories as classified in BioFuelDB. (c) Lignocellulolytic CAZyme sub-families segregated activity-wise. (d) Lignocellulolytic BPZymes with Enzyme Commission (EC) number extracted from (b) and correlated to (c) (dotted lines).
