Figure 7
From: First experimental evidence of the piezoelectric nature of struvite

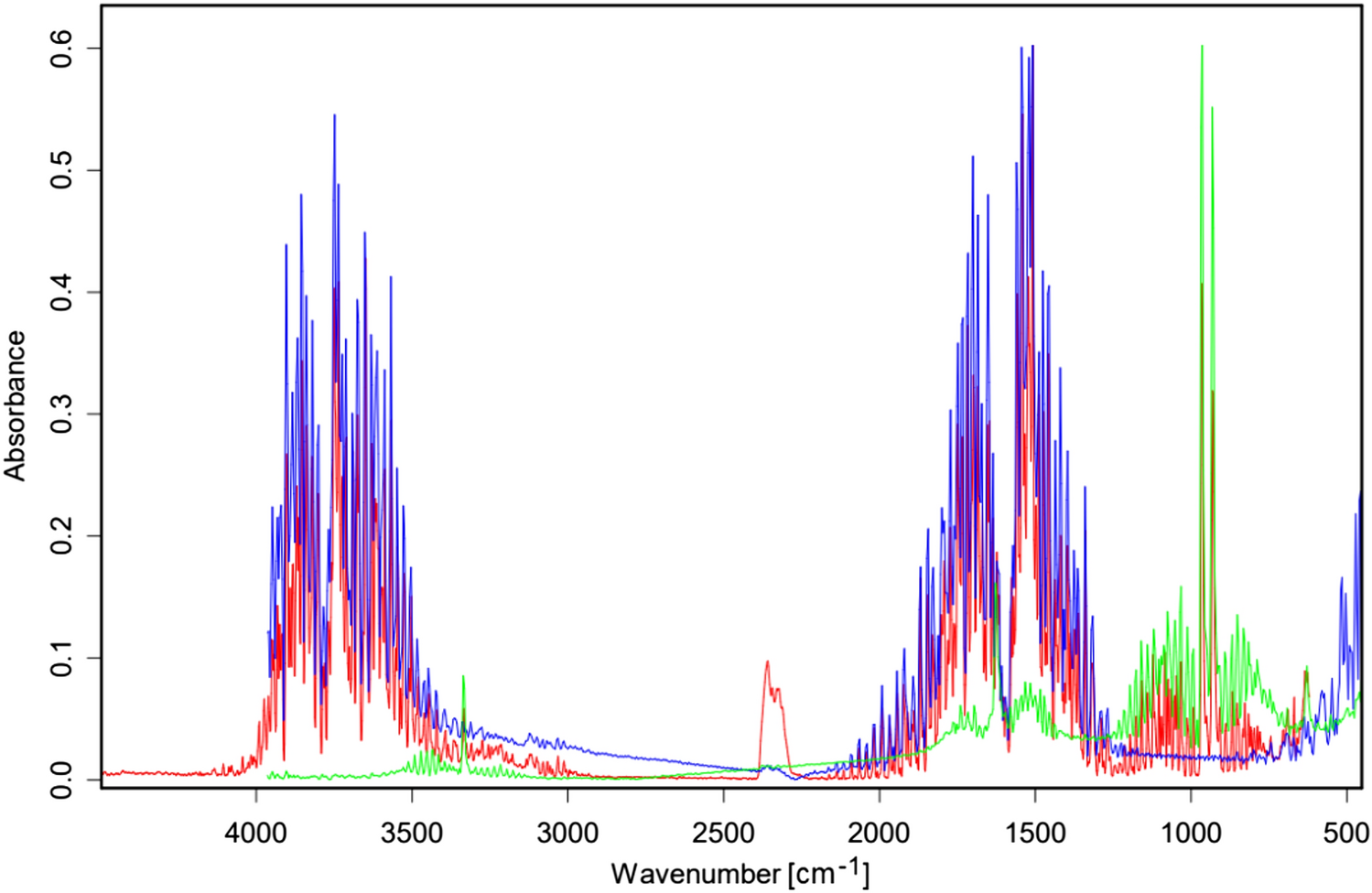

Fourier Transform Infrared (FTIR) spectrum of gaseous products formed during heating of struvite in an open crucible (registered at 340 K)-red, water reference spectrum-blue, ammonia reference spectrum-green.
